Question: 4. (10pts) Using K-map, minimize the Boolean equation described by the following truth table. Show your work. 5. (10 pts)Sketch a combinational circuit for the

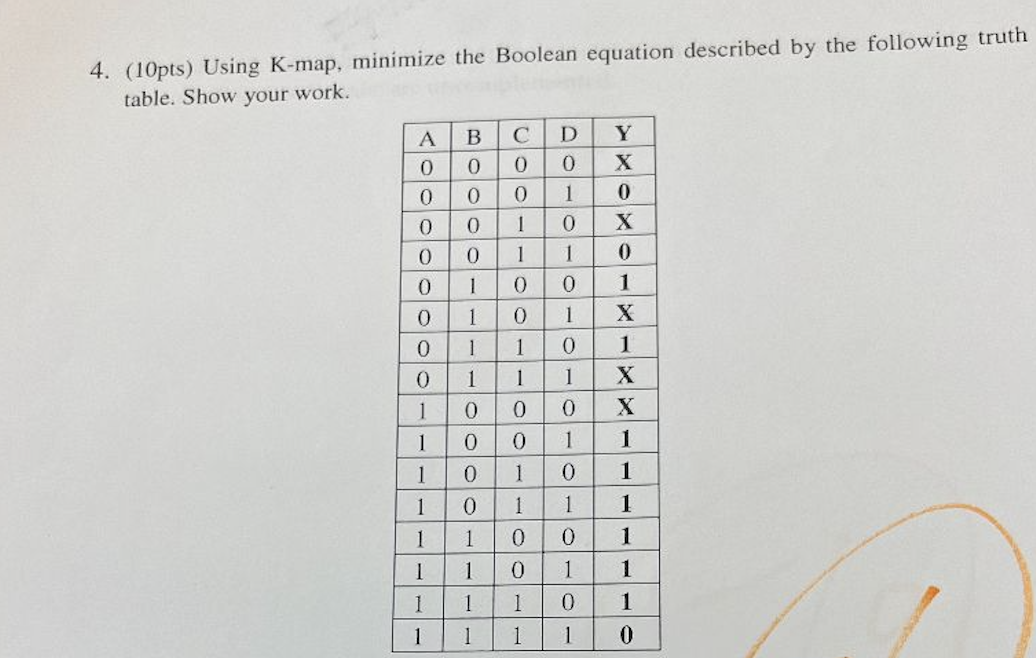

4. (10pts) Using K-map, minimize the Boolean equation described by the following truth table. Show your work. 5. (10 pts)Sketch a combinational circuit

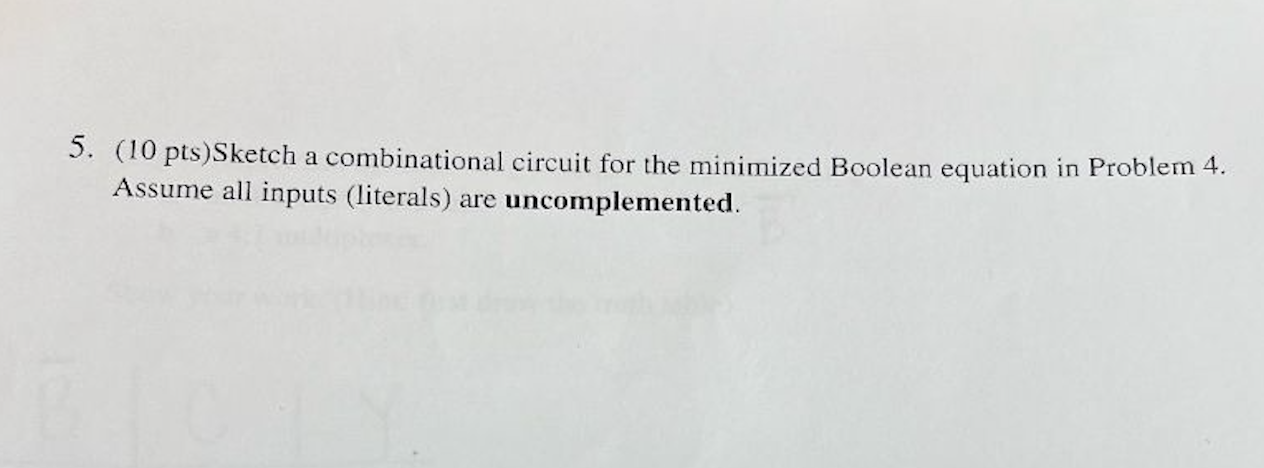

4. (10pts) Using K-map, minimize the Boolean equation described by the following truth table. Show your work. 5. (10 pts)Sketch a combinational circuit for the minimized Boolean equation in Problem 4. Assume all inputs (literals) are uncomplemented

Step by Step Solution

There are 3 Steps involved in it
