Question: ( 4 ) ( 2 0 pts ) An op - amp configuration show below, please figure out the followings: ( a ) Assume the

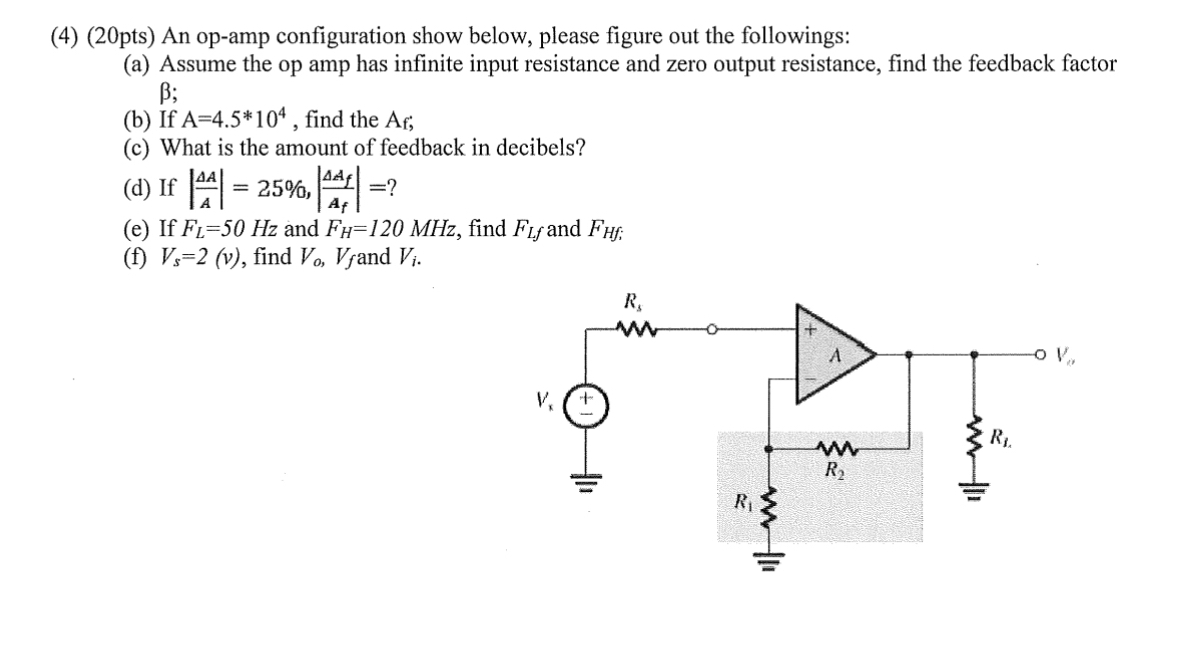

(4)(20pts) An op-amp configuration show below, please figure out the followings:
(a) Assume the op amp has infinite input resistance and zero output resistance, find the feedback factor ;
(b) If A=4.5**104, find the Af;
(c) What is the amount of feedback in decibels?
(d) If |AA|=25%,|AfAf|=?
(e) If FL=50Hz and FH=120MHz, find FLf and FHf;
(f)Vs=2(v), find Vo,Vf and Vi.
R1=15k R2=25k
