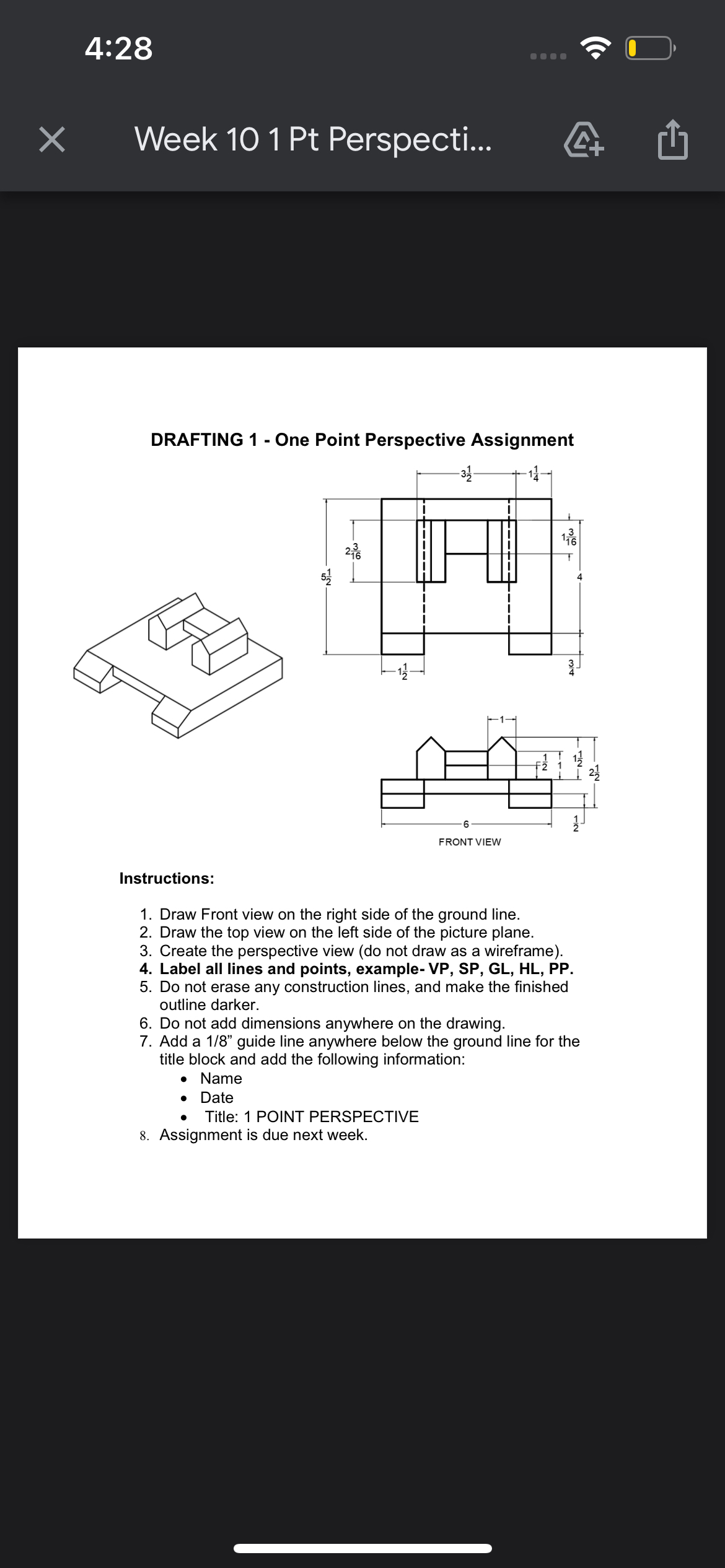

DRAFTING $1-$ One Point Perspective Assignment

Instructions:

Draw Front view on the right side of the ground line.

Draw the top view on the left side of the picture plane.

Create the perspective view $($do not draw as a wireframe$).$

Label all lines and points, example$-$VP$,$ SP$,$ GL$,$ HL$,$ PP$.$

Do not erase any construction lines, and make the finished outline darker.

Do not add dimensions anywhere on the drawing.

Add a $\frac{1}{8}"$ guide line anywhere below the ground line for the title block and add the following information:

Name

Date

Title: $1$ POINT PERSPECTIVE

Assignment is due next week.
