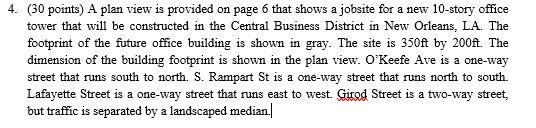

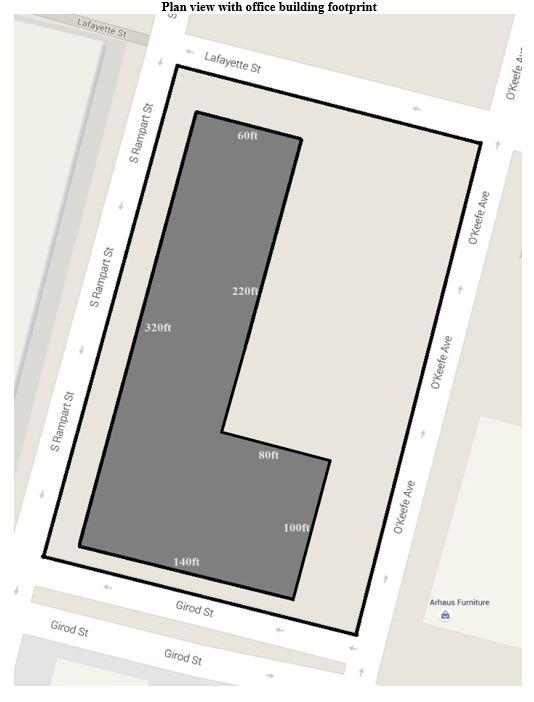

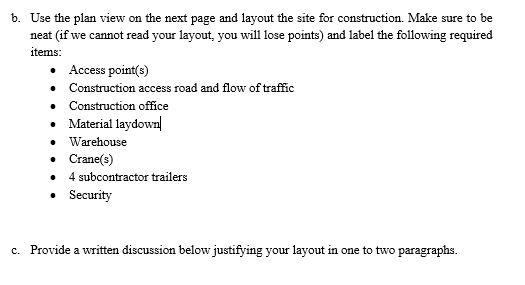

4. (30 points) A plan view is provided on page 6 that shows a jobsite for a new 10-story office tower that will be constructed in the Central Business District in New Orleans, LA. The footprint of the future office building is shown in gray. The site is 350A by 200ft. The dimension of the building footprint is shown in the plan view. O'Keefe Ave is a one-way street that runs south to north. S. Rampart St is a one-way street that runs north to south. Lafayette Street is a one-way street that runs east to west. Gisod Street is a two-way street, but traffic is separated by a landscaped median b. Use the plan view on the next page and layout the site for construction. Make sure to be neat (if we cannot read your layout, you will lose points) and label the following required items: Access point(s) Construction access road and flow of traffic Construction office Material laydowal Warehouse Crane(s) 4 subcontractor trailers Security c. Provide a written discussion below justifying your layout in one to two paragraphs. Plan view with office building footprint Lafayette St Lafayette St O'Keefe S Rampart St 60ft O'Keefe Ave S Rampart St 2200 3200 O'Keefe Ave S Rampart St 80ft O'Keefe Ave 1000 140Ft Girod St Arhaus Furniture Girod St Girod St 4. (30 points) A plan view is provided on page 6 that shows a jobsite for a new 10-story office tower that will be constructed in the Central Business District in New Orleans, LA. The footprint of the future office building is shown in gray. The site is 350A by 200ft. The dimension of the building footprint is shown in the plan view. O'Keefe Ave is a one-way street that runs south to north. S. Rampart St is a one-way street that runs north to south. Lafayette Street is a one-way street that runs east to west. Gisod Street is a two-way street, but traffic is separated by a landscaped median b. Use the plan view on the next page and layout the site for construction. Make sure to be neat (if we cannot read your layout, you will lose points) and label the following required items: Access point(s) Construction access road and flow of traffic Construction office Material laydowal Warehouse Crane(s) 4 subcontractor trailers Security c. Provide a written discussion below justifying your layout in one to two paragraphs. Plan view with office building footprint Lafayette St Lafayette St O'Keefe S Rampart St 60ft O'Keefe Ave S Rampart St 2200 3200 O'Keefe Ave S Rampart St 80ft O'Keefe Ave 1000 140Ft Girod St Arhaus Furniture Girod St Girod St
