Question: * 4 - 4 . Determine the internal normal force, shear force, and bending moment at point D . Take w = 1 5 0

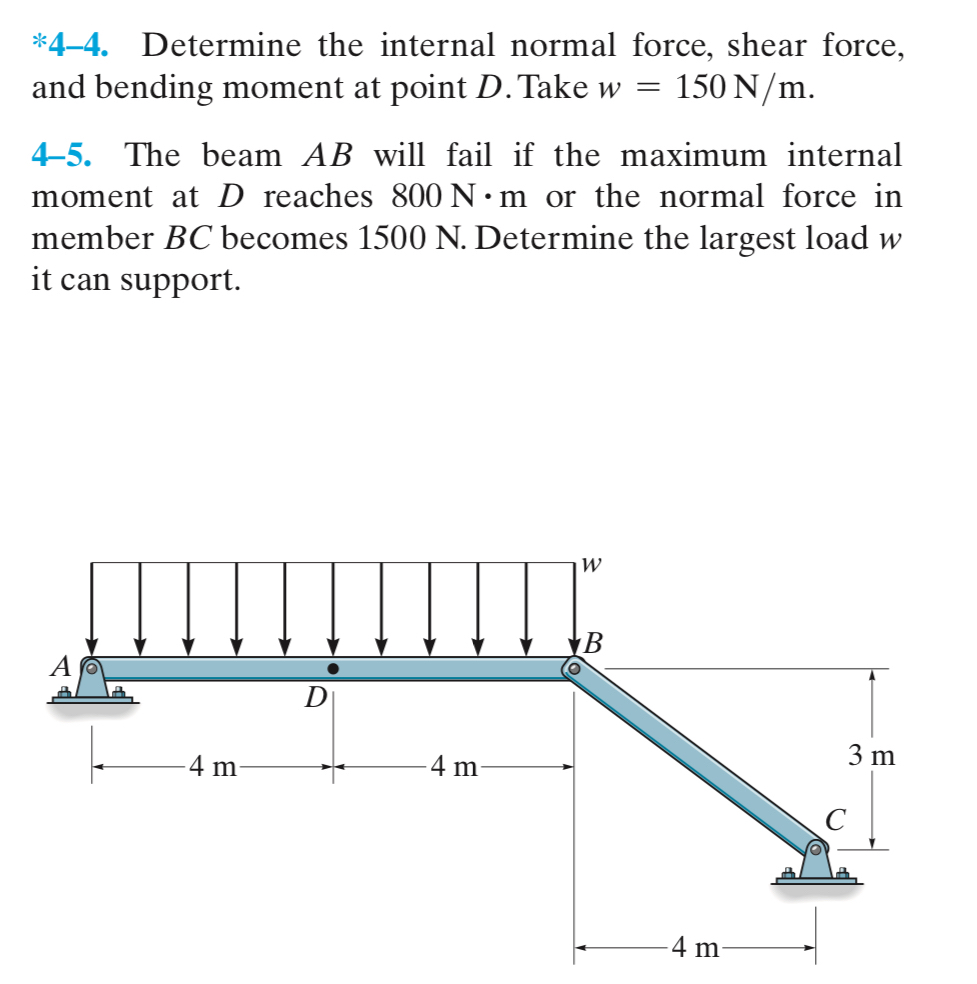

*4-4. Determine the internal normal force, shear force, and bending moment at point D. Take w=150Nm.
4-5. The beam AB will fail if the maximum internal moment at D reaches 800N*m or the normal force in member BC becomes 1500N. Determine the largest load w it can support.
* 4 - 4 . Determine the internal normal force,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
