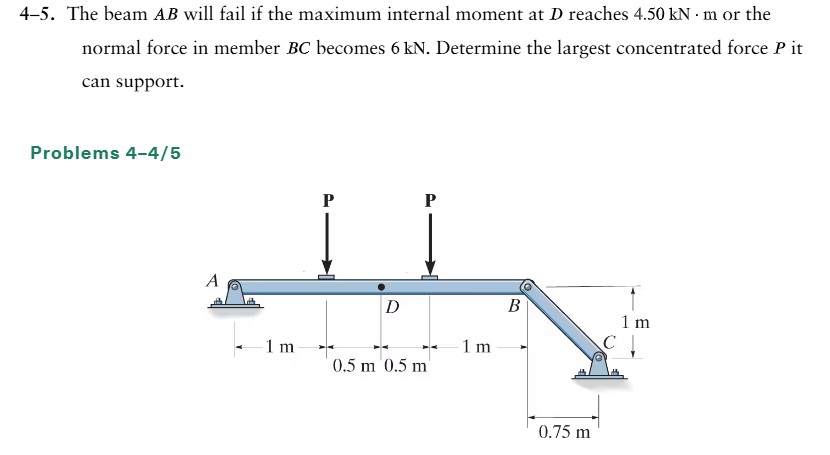

Question: 4 - 5 . The beam A B will fail if the maximum internal moment at D reaches 4 . 5 0 k N *

4-5. The beam AB will fail if the maximum internal moment at D reaches 4.50kN*m or the
normal force in member BC becomes 6 kN . Determine the largest concentrated force P it
can support.
answer : P=4.50 kN , struggling to get that answer.
4 - 5 . The beam A B will fail if the maximum

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
