Question: 4 - 8 5 . Two couples act on the frame. If d = 4 f t , determine the resultant couple moment. Compute the

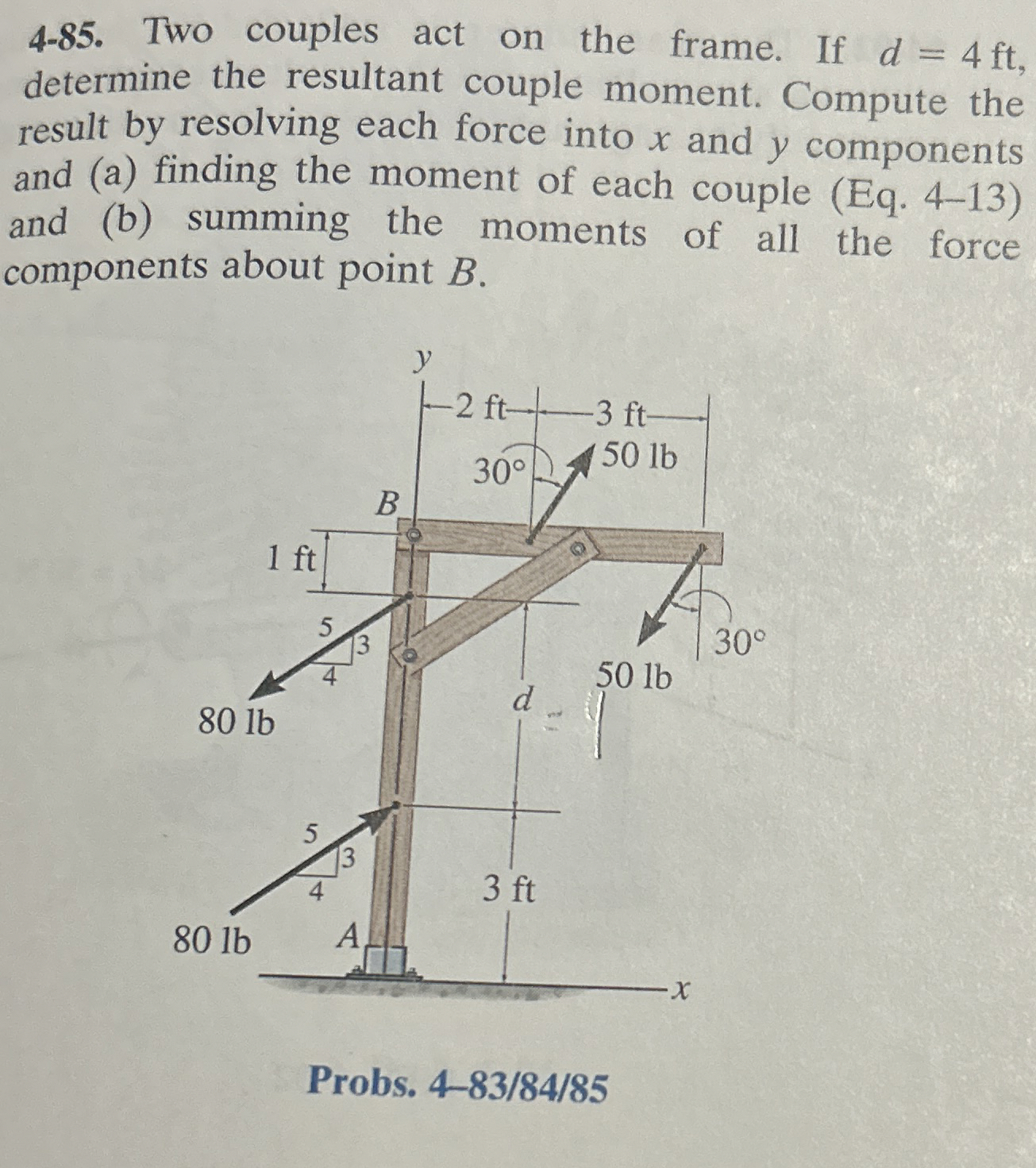

4-85. Two couples act on the frame. If d=4ft, determine the resultant couple moment. Compute the result by resolving each force into x and y components and (a) finding the moment of each couple (Eq.4-13) and (b) summing the moments of all the force components about point B.
Probs. 4-83/84/85
4 - 8 5 . Two couples act on the frame. If d = 4

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Q 3 ) Two couples act on the frame. If d = 0 . 4 m , determine the resultant couple moment. Compute the result by resolving each force into x and y components and ( a ) finding the moment of each...

Q:

Two couples act on the frame. If d = 4 ft, determine the resultant couple moment. Compute the result by resolving each force into x and y components and (a) Finding the moment of each couple (Eq....

Q:

Two couples act on the frame. Determine the resultant couple moment. Compute the result by resolving each force into x and y components and (a) Finding the moment of each couple (Eq. 4 -13) and (b)...

Q:

Two couples act on the frame. If d = 4 ft, determine the resultant couple moment. Compute the result by resolving each force into x and y components and (a) Finding the moment of each couple (Eq....

Q:

Two couples act on the frame. Determine the resultant couple moment. Compute the result by resolving each force into x and y components and (a) Finding the moment of each couple (Eq. 4-13) and (b)...

Q:

4-81. Two couples act on the frame. If d = 4 ft, determine the resultant couple moment. Compute the result by resolving each force into x and y components and (a) finding the moment of each couple...

Q:

Two couples act on the frame. If d = 4 ft, determine the resultant couple moment by (a) Summing the moments of the two couples (b) Resolving each force into x and y components and then summing the...

Q:

Two couples act on the frame. If d = 6 ft, determine the resultant couple moment by (a) Summing the moments of the two couples (b) Resolving each force into x and y components and then summing the...

Q:

Two couples act on the frame showin in ( Figure 1 ) . F = 1 9 0 lb . Figure 1 of 1 An L shaped frame is subjected to two force couples. The left end of the horizontal beam is fixed to a wall at point...

Q:

Two couples act on the frame shown in ( Figure 1 ) . If \ ( d = 4 . 8 \ mathrm { ft } \ ) , determine the resultant couple moment either by summing the moments of the two couples or resolving each...

Q:
