Question: Q 3 ) Two couples act on the frame. If d = 0 . 4 m , determine the resultant couple moment. Compute the result

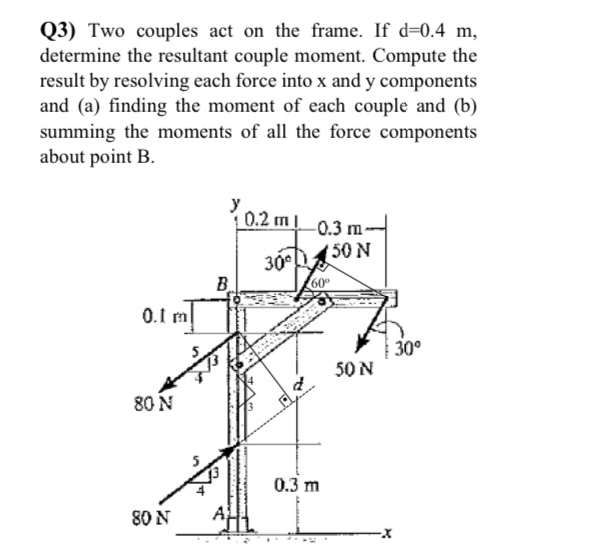

Q3) Two couples act on the frame. If d=0.4m, determine the resultant couple moment. Compute the result by resolving each force into x and y components and (a) finding the moment of each couple and (b) summing the moments of all the force components about point B.
Q 3 ) Two couples act on the frame. If d = 0 . 4

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Two couples act on the frame. If d = 6 ft, determine the resultant couple moment by (a) Summing the moments of the two couples (b) Resolving each force into x and y components and then summing the...

Q:

Two couples act on the frame. If d = 4 ft, determine the resultant couple moment. Compute the result by resolving each force into x and y components and (a) Finding the moment of each couple (Eq....
