Question: 4 . a . Determine the maximum normal stress developed in the bar when it is subjected to a tension of ( mathrm

4. a. Determine the maximum normal stress developed in the bar when it is subjected to a tension of \(\mathrm{P}=8\mathrm{kN}\).
b. For your result in part a, compare your results with those obtained with Finite Element Analysis. Demonstrate the stress distribution field around the vicinity of the hole,
b. If the allowable normal stress for the bar is 120 MPa , determine the maximum axial force P that can be applied to the bar.
Tip: See the lecture notes about stress concentration factors.
4 . a . Determine the maximum normal stress

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Part A Determine the maximum normal stress developed in the bar when it is subjected to a tension of P = 1 . 5 kip ( Figure 1 ) Use data from ( Figure 2 ) and ( Figure 3 ) . 2 of 3 Previous Answers...

Q:

a . Determine the maximum normal stress developed in the bar when it is subjected to a tension of \ ( \ mathrm { P } = 8 \ mathrm { kN } \ ) . b . For your result in part a , compare your results...

Q:

a . Determine the maximum normal stress developed in the bar when it is subjected to a tension of P = 8 k N . b . For your result in part a , compare your results with those obtained with Finite...

Q:

The bar is subjected to a tension of P = 3 . 5 kip. ( Figure 1 ) Figure Determine the maximum normal stress developed in the bar. Express your answer in kilopounds per square inch to three...

Q:

The bar is subjected to a tension of P = 7 . 0 k N . ( Figure Figure ( Determine the maximum normal stress developed in the bar. )

Q:

a . Determine the maximum normal stress developed in the bar when it is subjected to a tension of P = 8 kN . b . For your result in part a , compare your results with those obtained with Finite...

Q:

Problem 4 . 9 2 Part A Determine the maximum normal stress developed in the bar when it is subjected to a tension of P = 3 . 5 kip. ( Figure 1 ) Use data from ( Figure 2 ) and ( Figure 3 ) . Request...

Q:

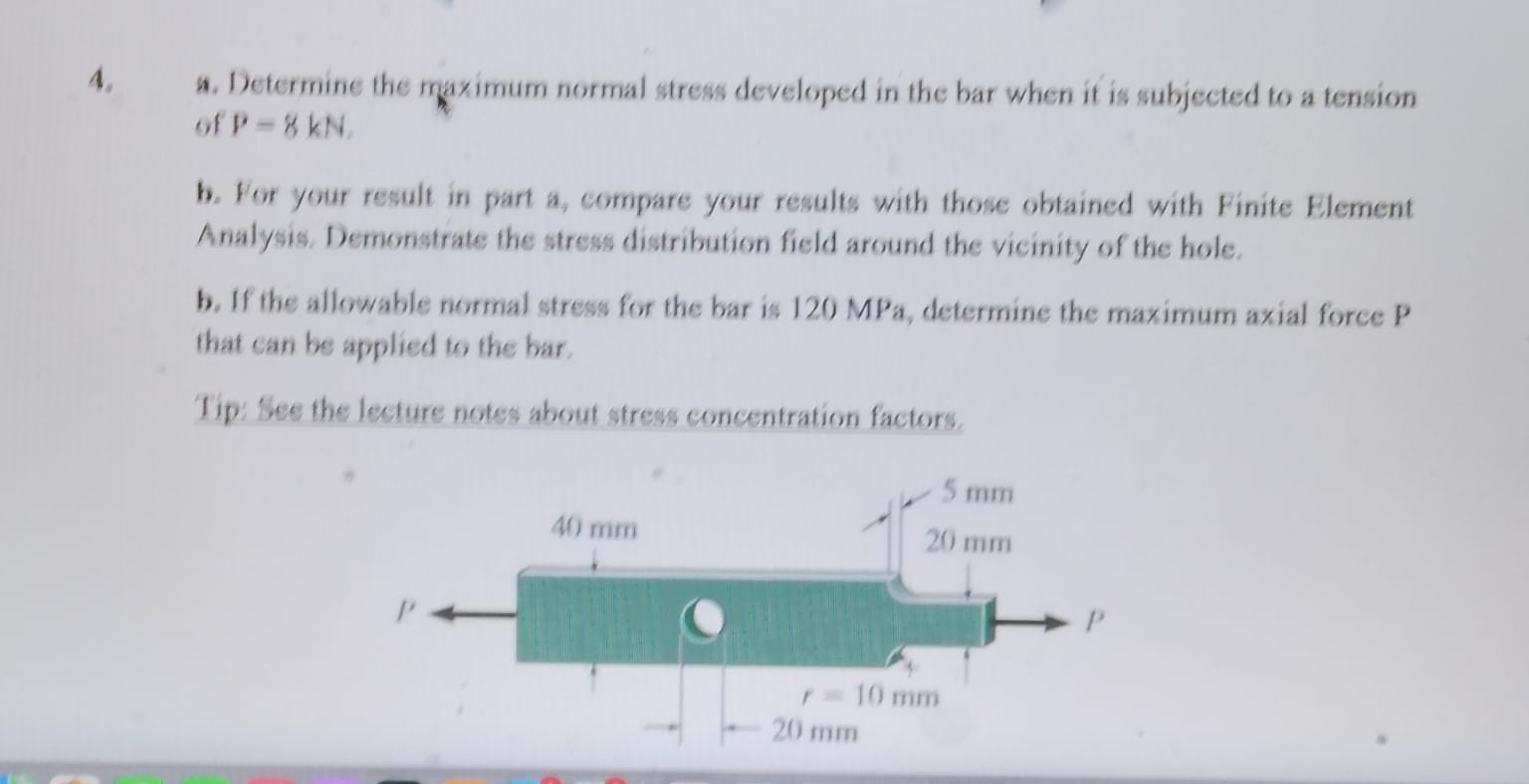

Determine the maximum normal stress developed in the bar when it is subjected to a tension of P = 8 kN. 5 mm 40 mm 20 mm r = 10 mm 20 mm

Q:

* 4 - 9 2 . Determine the maximum normal stress developed in the bar when it is subjected to a tension of P = 2 kip. Problem 4 - 9 2

Q:

Determine the maximum normal stress developed in the bar when it is subjected to a tension of P = 8 k N . ( ANS: fillet is 1 1 2 MPa . Hole is 2 0 0 MPa
