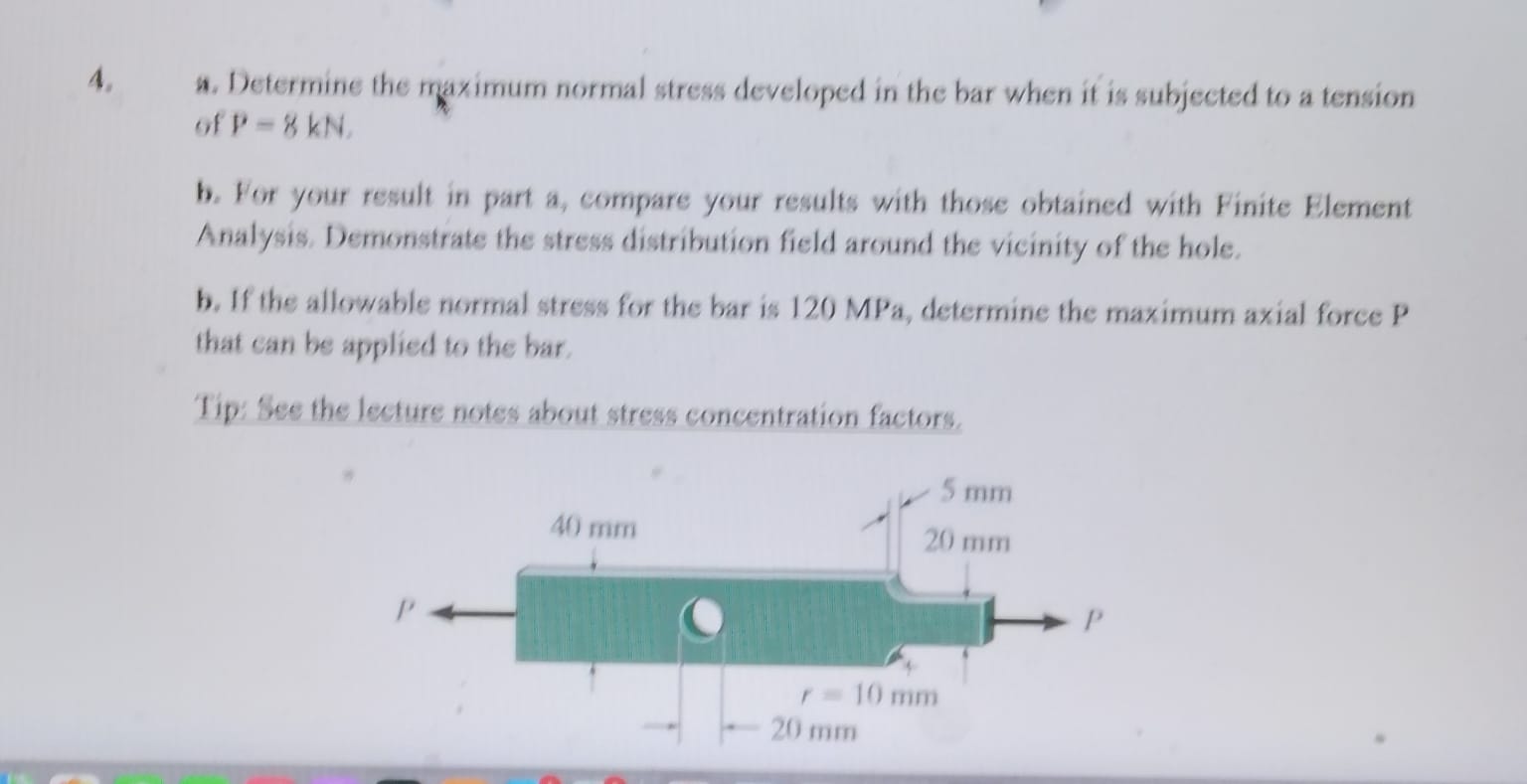

Question: a . Determine the maximum normal stress developed in the bar when it is subjected to a tension of P = 8 kN . b

a. Determine the maximum normal stress developed in the bar when it is subjected to a tension of P =8 kN.
b. For your result in part a, compare your results with those obtained with Finite Element please answer question b correctley
a . Determine the maximum normal stress developed

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
