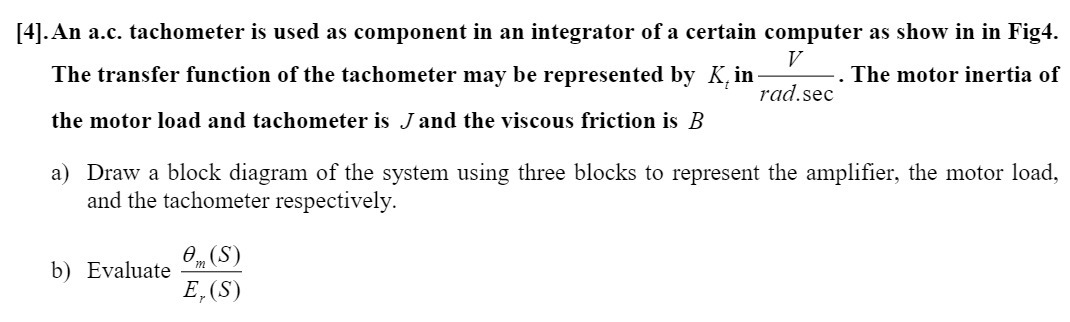

Question: [4]. An a.c. tachometer is used as component in an integrator of a certain computer as show in in Fig4. V The transfer function of

[4]. An a.c. tachometer is used as component in an integrator of a certain computer as show in in Fig4. V The transfer function of the tachometer may be represented by K, in The motor inertia of rad.sec the motor load and tachometer is J and the viscous friction is B a) Draw a block diagram of the system using three blocks to represent the amplifier, the motor load, and the tachometer respectively. b) Evaluate em (S) E, (S)
