Question: 4. Determine IP and frame header information for a data packet. (10 points) F1 FO FO F1 RA RE Client X Server Y Client X

4. Determine IP and frame header information for

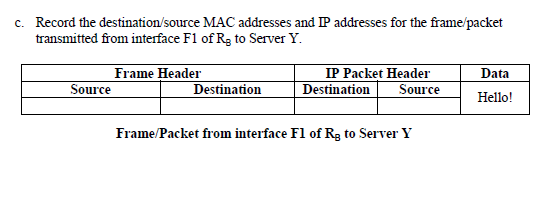

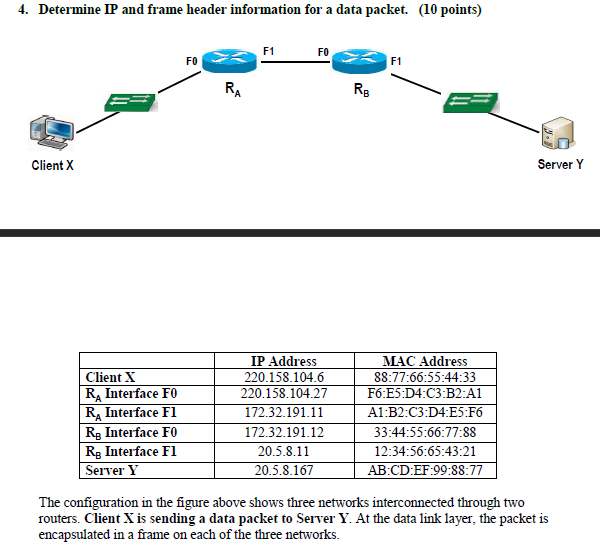

4. Determine IP and frame header information for a data packet. (10 points) F1 FO FO F1 RA RE Client X Server Y Client X RA Interface FO RA Interface F1 Rg Interface FO Rg Interface F1 Server Y IP Address 220.158.104.6 220.158.104.27 172.32.191.11 172.32.191.12 20.5.8.11 20.5.8.167 MAC Address 88:77:66:55:44:33 F6:E5:04:C3:B2:A1 A1:B2:C3:D4:ES:F6 33:44:55:66:77:88 12:34:56:65:43:21 AB:CD:EF:99:88:77 The configuration in the figure above shows three networks interconnected through two routers. Client X is sending a data packet to Server Y. At the data link layer, the packet is encapsulated in a frame on each of the three networks. c. Record the destination source MAC addresses and IP addresses for the frame/packet transmitted from interface F1 of Rg to Server Y. Frame Header IP Packet Header Source Destination Destination Source Hello! Data Frame/Packet from interface Fl of Rg to Server Y

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

Please Explain and PLEASE use the given table above 4. Determine IP and frame header information for a data packet. (10 points) F1 FO FO F1 RA RE Client X Server Y Client X RA Interface FO RA...

. Please Explain and PLEASE use the table provided from F0 to RA 4. Determine IP and frame header information for a data packet. (10 points) F1 FO FO F1 RA RE Client X Server Y Client X RA Interface...

4. Determine IP and frame header information for a data packet. (10 points) F1 FO FO F1 RA RE Client X Server Y Client X RA Interface FO RA Interface F1 Rg Interface FO Rg Interface F1 Server Y IP...

PLEASE explain and PLEASE use given table above. 4. Determine IP and frame header information for a data packet. (10 points) F1 FO FO F1 RA RE Client X Server Y Client X RA Interface FO RA Interface...

4. Determine IP and frame header information for a data packet. (10 points) F1 FO FO F1 RA RE Client X Server Y Client X RA Interface FO RA Interface F1 Rg Interface FO Rg Interface F1 Server Y IP...

A host has been assigned the following IP address and mask: 192.169.45.161/20. Find the network address (Fill in the blanks in the table: 30 points). IP Address in Binary Mask in Binary Network...

a. A host has been assigned the following IP address and mask: 192.169.45.161 /20. Find the network address (Fill in the blanks in the table: 30 points). IP Address in Binary Mask in Binary Network...

Determine IP and MAC header information for a data packet. E1 FO EO F1 R1 R2 lient A Server B Client A R1 Interface EO Ri Interface E1 R2 Interface FO R2 Interface Fl Server B IP Address 172 16.2.35...

Routing Table Destination Metric (Hop Next-Hop Mask Count Router Local Network 120.15.179.0 140.186.35.0 174.16.9.0 68.5.44.0 64.0.0.0 140.186.35.0 197.14.0.0 64.28.0.0 20.75.63.0 255.255.255.0 24...
