Question: 4 . Find Vx and ix using the node voltage method. ( Please find the answers using superposition instead of a super node. If this

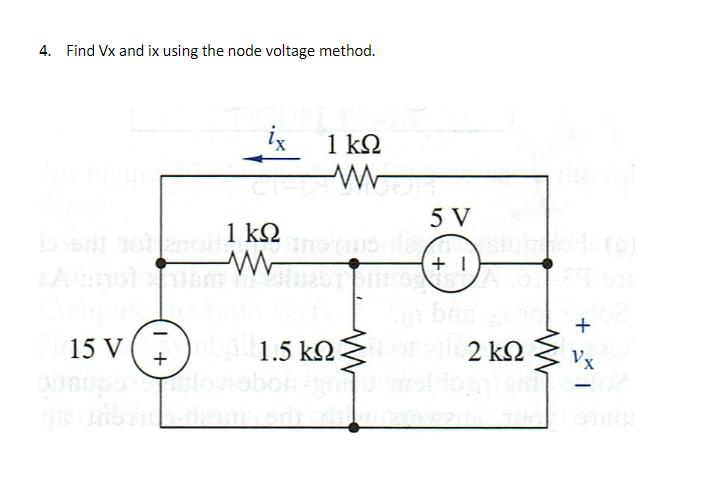

4. Find Vx and ix using the node voltage method.
(Please find the answers using superposition instead of a super node. If this is not possible, please explain why not. The answers should be Vx =-12.1 V and ix =2.89 mA. Thank you.)
4 . Find Vx and ix using the node voltage method.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
