$4.$ Problem Description $2$

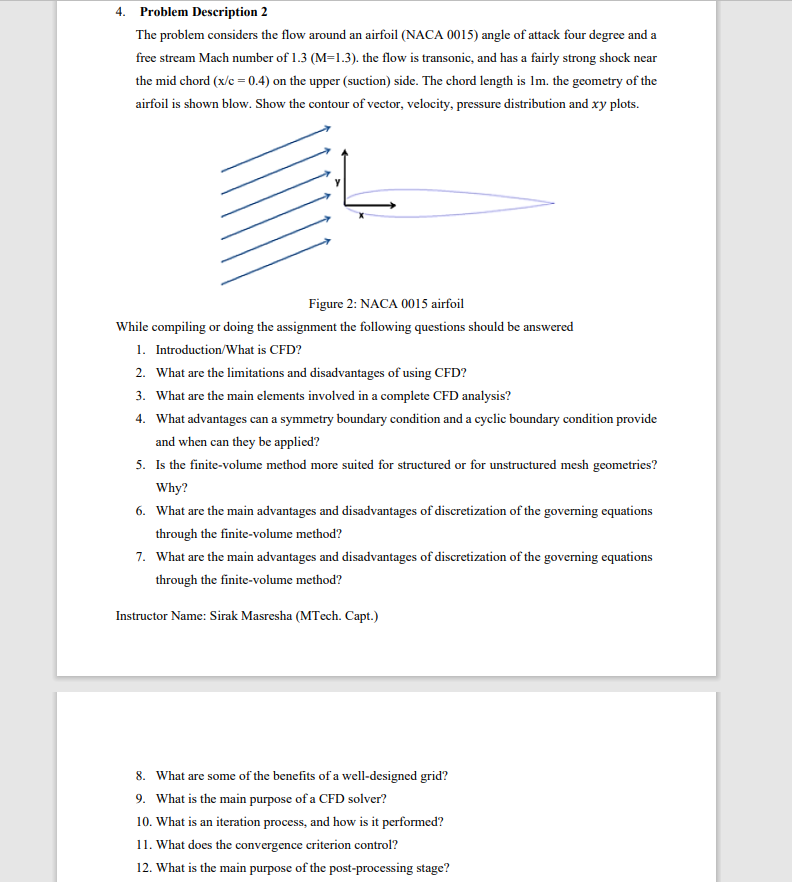

The problem considers the flow around an airfoil $($NACA $0015)$ angle of attack four degree and a free stream Mach number of $\backslash (1\mathrm{.}3(\backslash$mathrm$\{$M$\}=1\mathrm{.}3)\backslash ).$ the flow is transonic, and has a fairly strong shock near the mid chord $\backslash ((\backslash$mathrm$\{$x$\}/\backslash$mathrm$\{$c$\}=0\mathrm{.}4)\backslash )$ on the upper $($suction$)$ side. The chord length is lm$.$ the geometry of the airfoil is shown blow. Show the contour of vector, velocity, pressure distribution and $\backslash ($ x y $\backslash )$ plots.

rigure L: INALA UUID airron

While compiling or doing the assignment the following questions should be answered

$1.$ Introduction$/$What is CFD$?$

$2.$ What are the limitations and disadvantages of using CFD$?$

$3.$ What are the main elements involved in a complete CFD analysis?

$4.$ What advantages can a symmetry boundary condition and a cyclic boundary condition provide and when can they be applied?

$5.$ Is the finite$-$volume method more suited for structured or for unstructured mesh geometries? Why?

$6.$ What are the main advantages and disadvantages of discretization of the governing equations through the finite$-$volume method?

$7.$ What are the main advantages and disadvantages of discretization of the governing equations through the finite$-$volume method?

$8.$ What are some of the benefits of a well$-$designed grid?

$9.$ What is the main purpose of a CFD solver?

$10.$ What is an iteration process, and how is it performed?

$11.$ What does the convergence criterion control?

$12.$ What is the main purpose of the post$-$processing stage?

Problem Description $2$

The problem considers the flow around an airfoil $($NACA $0015)$ angle of attack four degree and a

free stream Mach number of $1\mathrm{.}3($M$=1\mathrm{.}3).$ the flow is transonic, and has a fairly strong shock near

the mid chord $($x$//$c$=0\mathrm{.}4)$ on the upper $($suction$)$ side. The chord length is lm$.$ the geometry of the

airfoil is shown blow. Show the contour of vector, velocity, pressure distribution and xy plots.

rigure L: INALA UUID airron

While compiling or doing the assignment the following questions should be answered

Introduction$/$What is CFD$?$

What are the limitations and disadvantages of using CFD$?$

What are the main elements involved in a complete CFD analysis?

What advantages can a symmetry boundary condition and a cyclic boundary condition provide

and when can they be applied?

Is the finite$-$volume method more suited for structured or for unstructured mesh geometries?

Why?

What are the main advantages and disadvantages of discretization of the governing equations

through the finite$-$volume method?

What are the main advantages and disadvantages of discretization of the governing equations

through the finite$-$volume method?

What are some of the benefits of a well$-$designed grid?

What is the main purpose of a CFD solver?

What is an iteration process, and how is it performed?

What does the convergence criterion control?

What is the main purpose of the post$-$processing stage?
