Question: 4 . Techinical Report D In the system below a double acting cylinder is holding a load ( sometimes heavy load ) Complete the missing

4.Techinical Report D

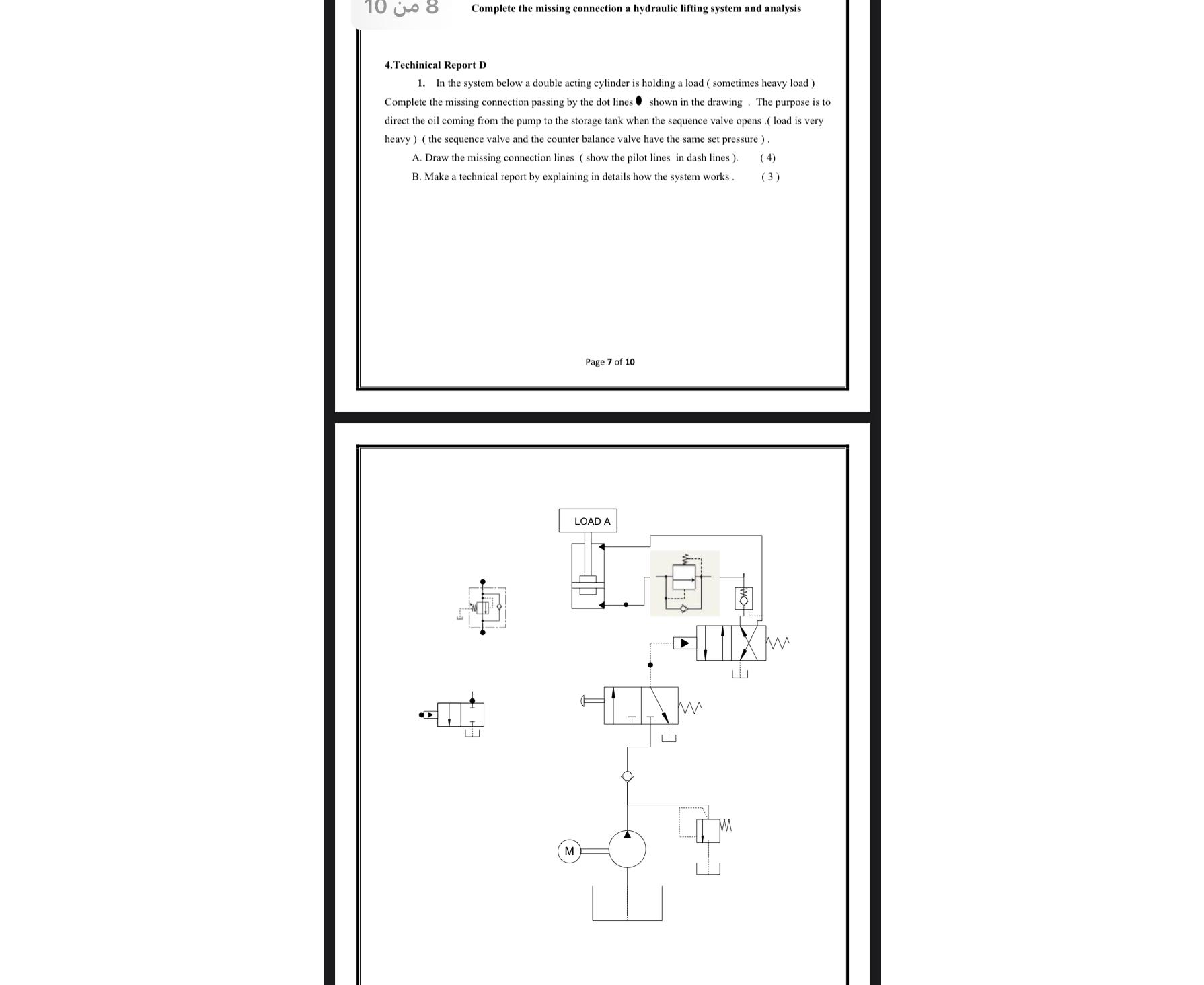

In the system below a double acting cylinder is holding a load ( sometimes heavy load) Complete the missing connection passing by the dot lines shown in the drawing. The purpose is to direct the oil coming from the pump to the storage tank when the sequence valve opens .( load is very heavy )( the sequence valve and the counter balance valve have the same set pressure ).
A. Draw the missing connection lines (show the pilot lines in dash lines).
 4.Techinical Report D In the system below a double acting cylinder
