Question: 4 . Use the Method of Sections for this problem. Determine the force in members EF , BE , and BC of the truss and

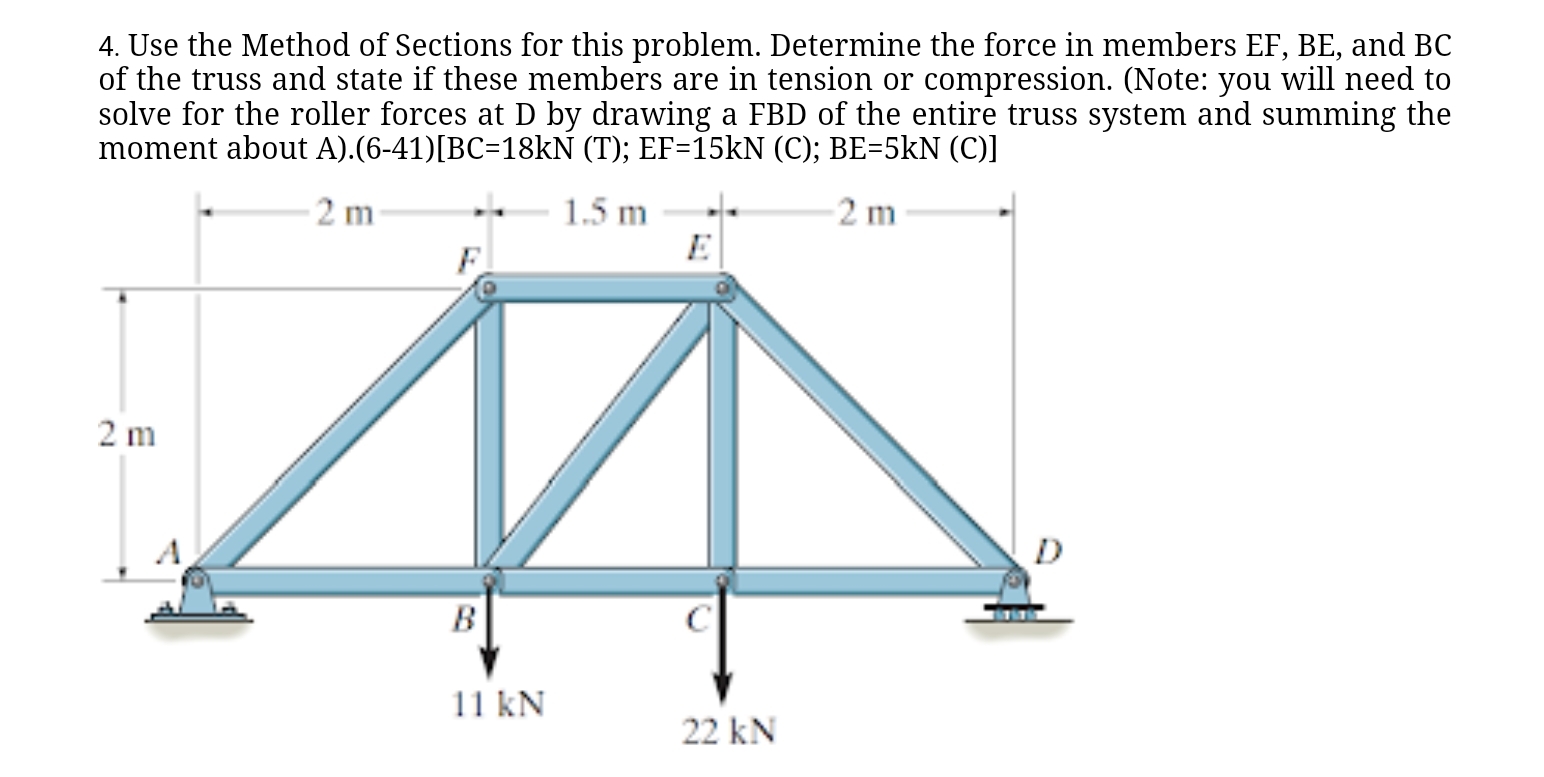

4. Use the Method of Sections for this problem. Determine the force in members EF, BE, and BC of the truss and state if these members are in tension or compression. (Note: you will need to solve for the roller forces at D by drawing a FBD of the entire truss system and summing the moment about A).(6-41)[BC=18kN (T); EF=15kN (C); BE=5kN (C)]
4 . Use the Method of Sections for this problem.

Step by Step Solution

There are 3 Steps involved in it
