Question: Problem 7 : A is a pinned support and I is a roller support. Determine the force in members EF , EM , and ST

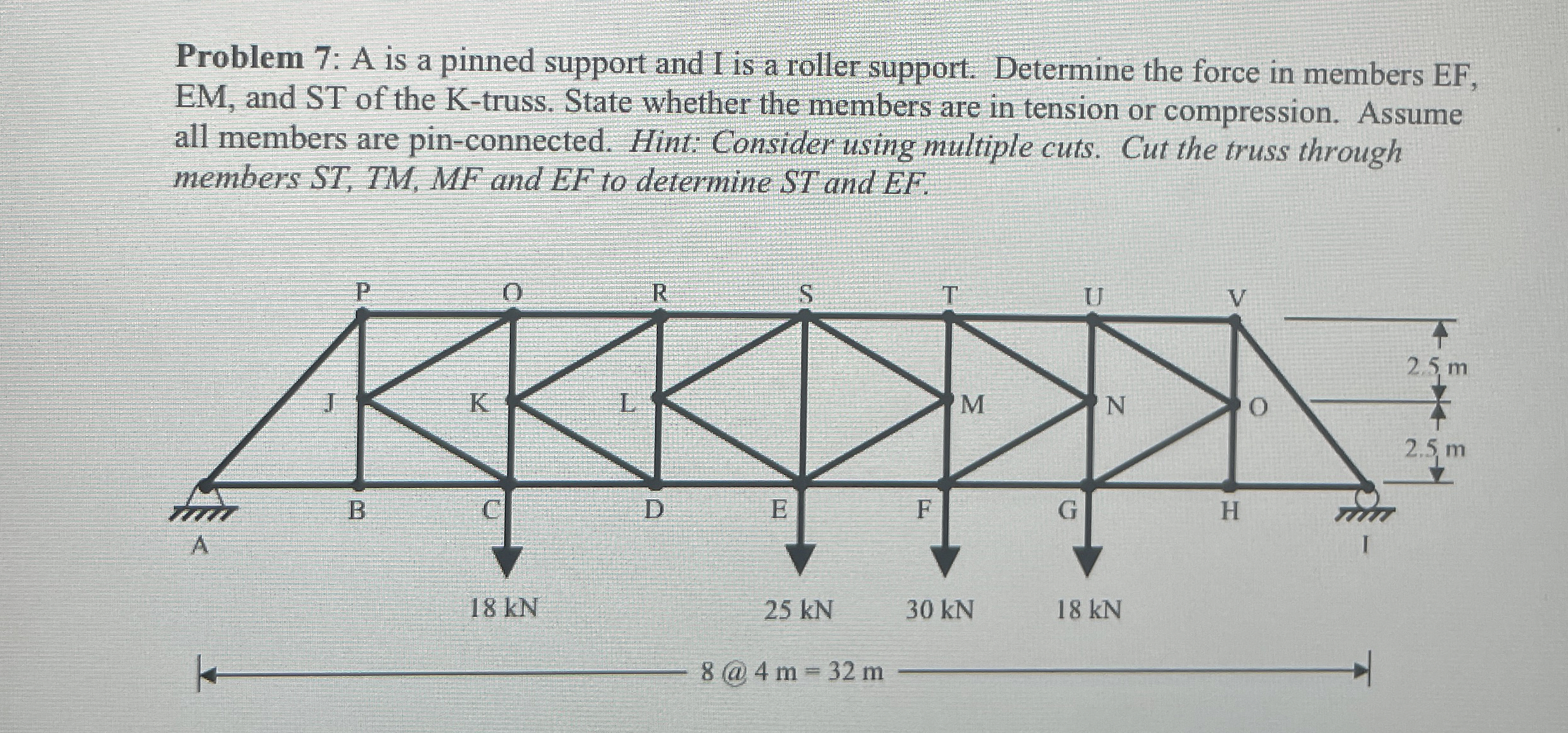

Problem 7: A is a pinned support and I is a roller support. Determine the force in members EF, EM, and ST of the K-truss. State whether the members are in tension or compression. Assume all members are pin-connected. Hint: Consider using multiple cuts. Cut the truss through members ST, TM, MF and EF to determine ST and EF.
Problem 7 : A is a pinned support and I is a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
