Question: 4. Using the rules for one-way and two-way slabs, draw the tributary areas (with dimensions) on the plan view drawing for beams ( mathrm{C}-mathrm{G} )

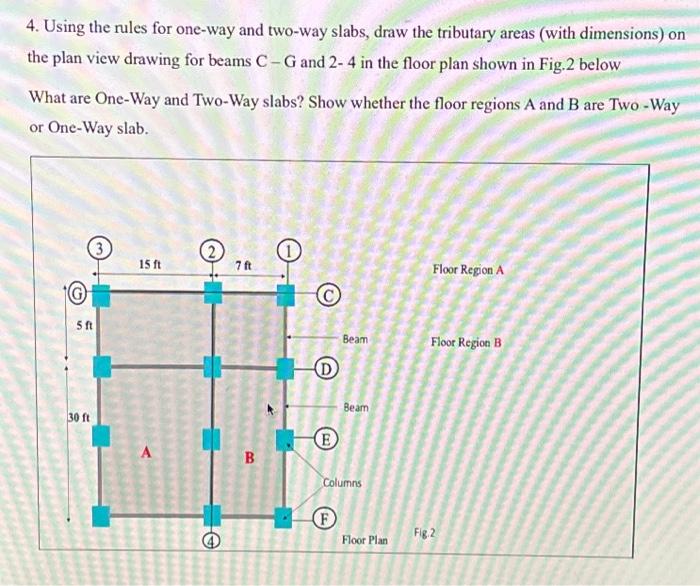

4. Using the rules for one-way and two-way slabs, draw the tributary areas (with dimensions) on the plan view drawing for beams $ \mathrm{C}-\mathrm{G} $ and 2- 4 in the floor plan shown in Fig. 2 b $tributary areas (with dimensions) on the plan view drawing for beams \($

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
