Question: 40.- Draw network diagrams using the activity-in-the-box format and the activity- on-the-arrow format for the following project and complete the table below (40pts) Earliest Latest

40.- Draw network diagrams using the
40.- Draw network diagrams using the

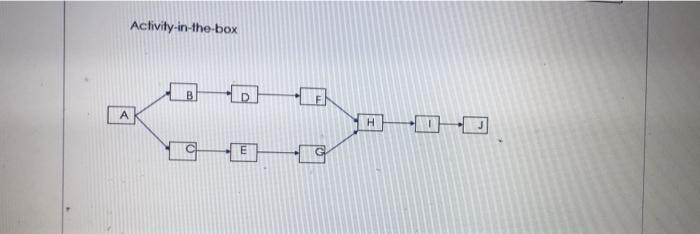

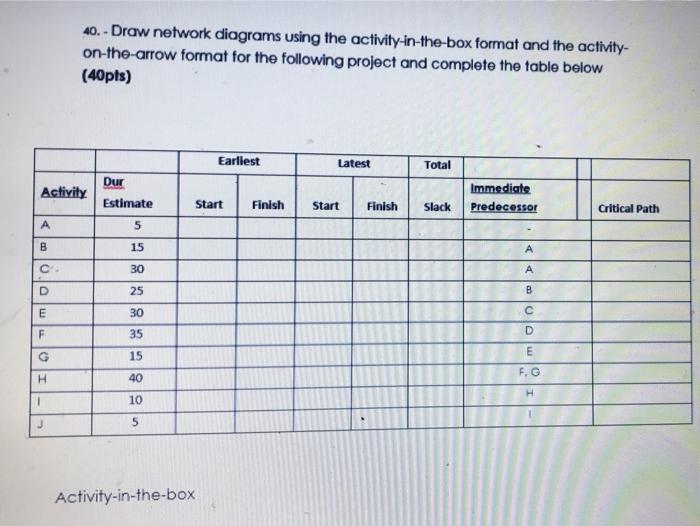

40.- Draw network diagrams using the activity-in-the-box format and the activity- on-the-arrow format for the following project and complete the table below (40pts) Earliest Latest Total Dur Activity Estimate Immediate Predecessor Start Finish Start Finish Slack Critical Path A 5 B 15 30 D 25 B E 30 F 35 D G 15 E F. H 40 H 1 10 J 5 Activity-in-the-box Activity-in-the-box B H g
