Question: (49%) Problem 13: A graph of acceleration versus time is shown. Which of the following graphs best represents a velocity curve that is consistent with

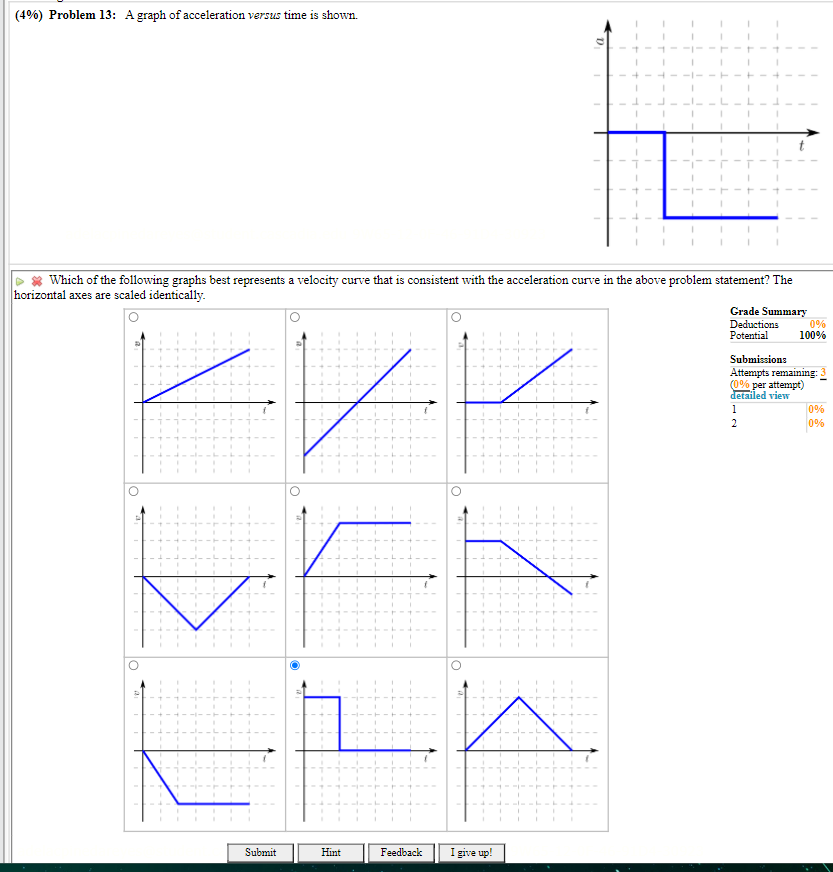

(49%) Problem 13: A graph of acceleration versus time is shown. Which of the following graphs best represents a velocity curve that is consistent with the acceleration curve in the above problem statement? The horizontal axes are scaled identically. O O Grade Summary Deductions 0% Potential 100% K- Submissions Attempts remaining: 3 (0% per attempt) detailed view 10% 0% O O O Submit Hint Feedback I give up

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
