Question: 5 . 2 2 and 5 . 2 3 Draw the shear and bending - moment diagrams for the beam and loading shown and determine

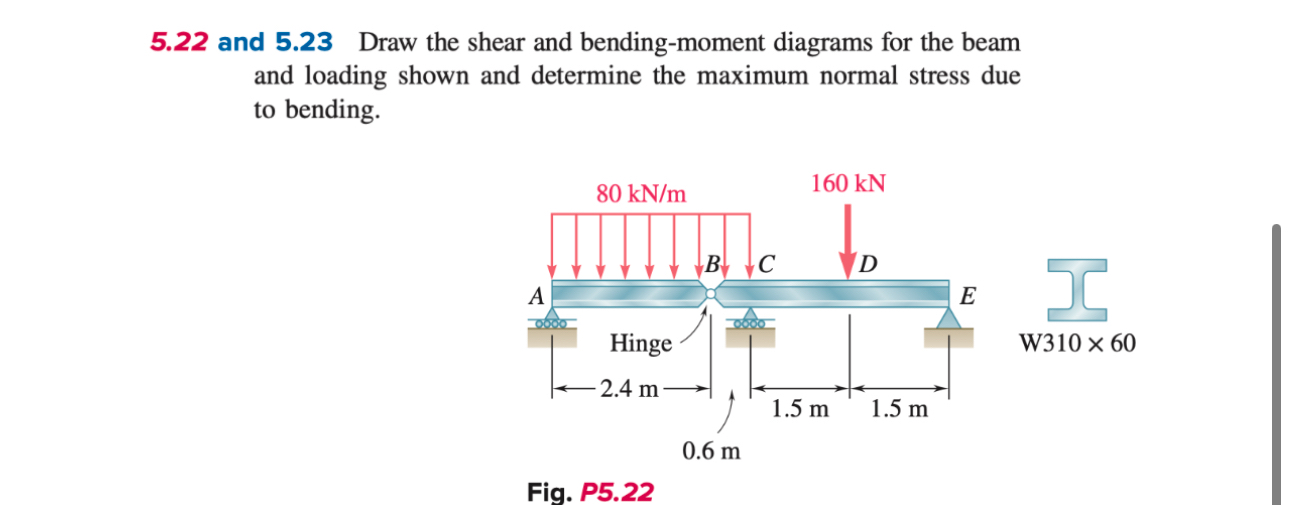

5.22 and 5.23 Draw the shear and bending-moment diagrams for the beam and loading shown and determine the maximum normal stress due to bending.
Fig. P5.22
5 . 2 2 and 5 . 2 3 Draw the shear and bending -

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

For the beam shown above: a) Draw the shear and bending moment diagrams. b) Determine the absolute maximum bending stress in the beam. c) If the overhanging beam is made of timber having the...

Q:

The W 3 6 0 X 7 9 roled - stel beam AC is staply saprted ad camas beuniformly distributed load shown. Draw the shear and bending moment diagrams for the beam determine the location and magnitude of...

Q:

Problem 3 (25 points) a) Find reactions at the supports b) Draw the shear diagram c) Draw the Moment diagram Calculate the maximum normal stress due to bending. The beam is made of S612.5 as shown...

Q:

Figure 3 . Beam assembly ( a ) Draw the shear and bending moment diagrams between A and D . ( b ) If shear stresses in the pins cannot exceed tau _ ( " yield , " ) find the minimum diameters of pins...

Q:

Question 2 ( 3 0 points ) : Beam A B has a total length of five ( 5 ) meters and is subjected to the concentrated ( point ) loads shown below. The beam has a solid semi - circular cross - section...

Q:

Getting lost in my math 3. Draw the shear and bending moment 2000 lb diagrams for the beam and loading shown to 200 1b/ft 4 in. the right. Determine: a) the maximum magnitude of the shear and of the...

Q:

Problem 1 ) Draw the shear and bending moment diagrams for the beam below. Clearly show the values and draw slopes correctly ( i . e . linear, parabolic ( curved ) , etc. ) . The beam is a 1 2 in ....

Q:

Question No . 2 ( 3 0 minutes ) : [ 2 0 pts ] The beam shown in Figure 2 has a rectangular cross section with a base of 2 5 mm and a height of 4 0 mm . Support at A is pin, supports at C and E are...

Q:

ENGR 2 4 0 Bending and Shear stress workbook Figure 1 : Simply Supported Beam Using the simply supported beam in figure 1 , do the following: 1 . ) Find the reaction forces at points A and C . 2 . )...

Q:

2 0 pts ) Draw the shear and bending moment diagrams for the beam and loading shown in Fig. 1 and determine the maximum normal stress due to bending
