Question: 5 . 2 Derive the model for the tank system shown in Figure P 5 . 2 . The flow rate q i is a

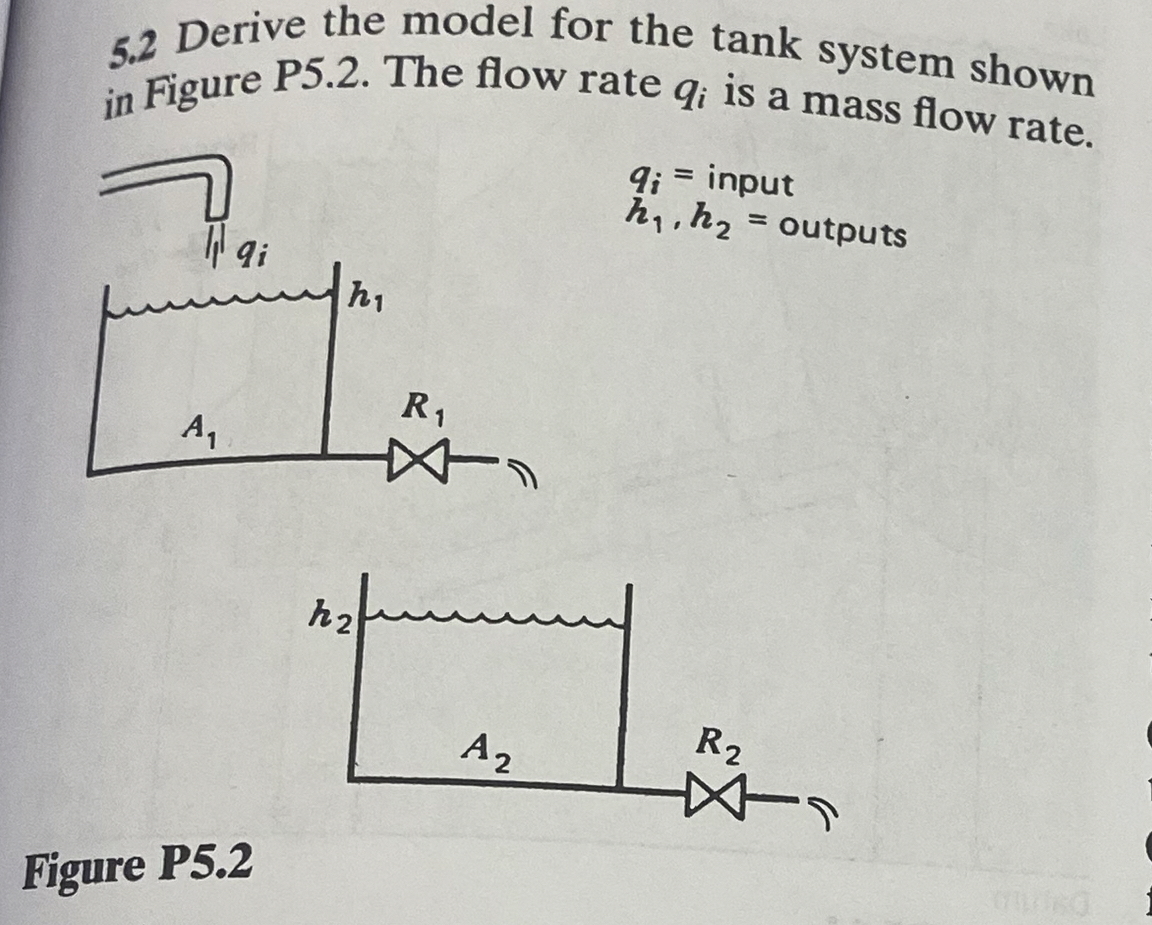

5.2 Derive the model for the tank system shown in Figure P5.2. The flow rate qi is a mass flow rate.
qi= input
h1,h2= outputs
Figure P5.2
5 . 2 Derive the model for the tank system shown
