Question: 5 . 2 Rigid Bodies and Two - Dimen 1 0 . Member ABD is supported by a pin at A and a cord attached

5.2 Rigid Bodies and Two-Dimen

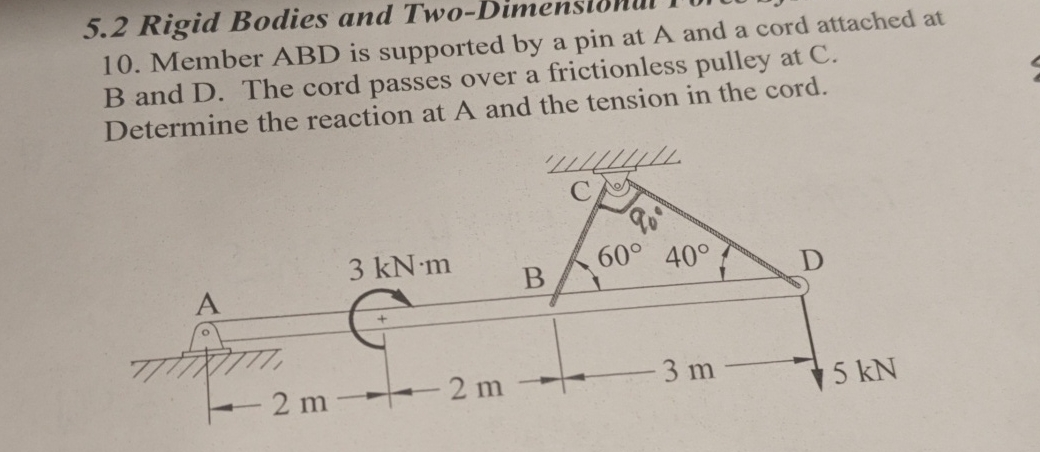

10. Member ABD is supported by a pin at A and a cord attached at B and D. The cord passes over a frictionless pulley at C. Determine the reaction at A and the tension in the cord.
5 . 2 Rigid Bodies and Two - Dimen 1 0 . Member

Step by Step Solution

There are 3 Steps involved in it
