Question: 5 . 4 > Design a combinational logic circuit for traffic control considering the following specifications: The circuit will accept two binary inputs and produce

5.4> Design a combinational logic circuit for traffic control considering the following specifications: The circuit will accept two binary inputs and produce three outputs. the three outputs are as follows: Red-Light \(\mathbf{X}=\mathrm{NOT}(\mathrm{J})\) Yellow-Light \(\mathbf{Y}=\mathrm{K}\) Green-Light \(\mathbf{Z}=\mathrm{J}\) AND (NOT K) at each step draw, the required circuits need by the input to generate the desired output.

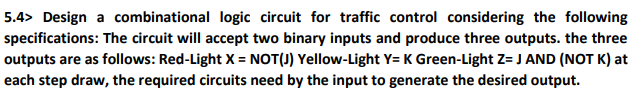

5 . 4 > Design a combinational logic circuit for
