Question: * 5 - 4 . The cable supports the loading shown. Determine the distance y and the tension in cable B C . Set P

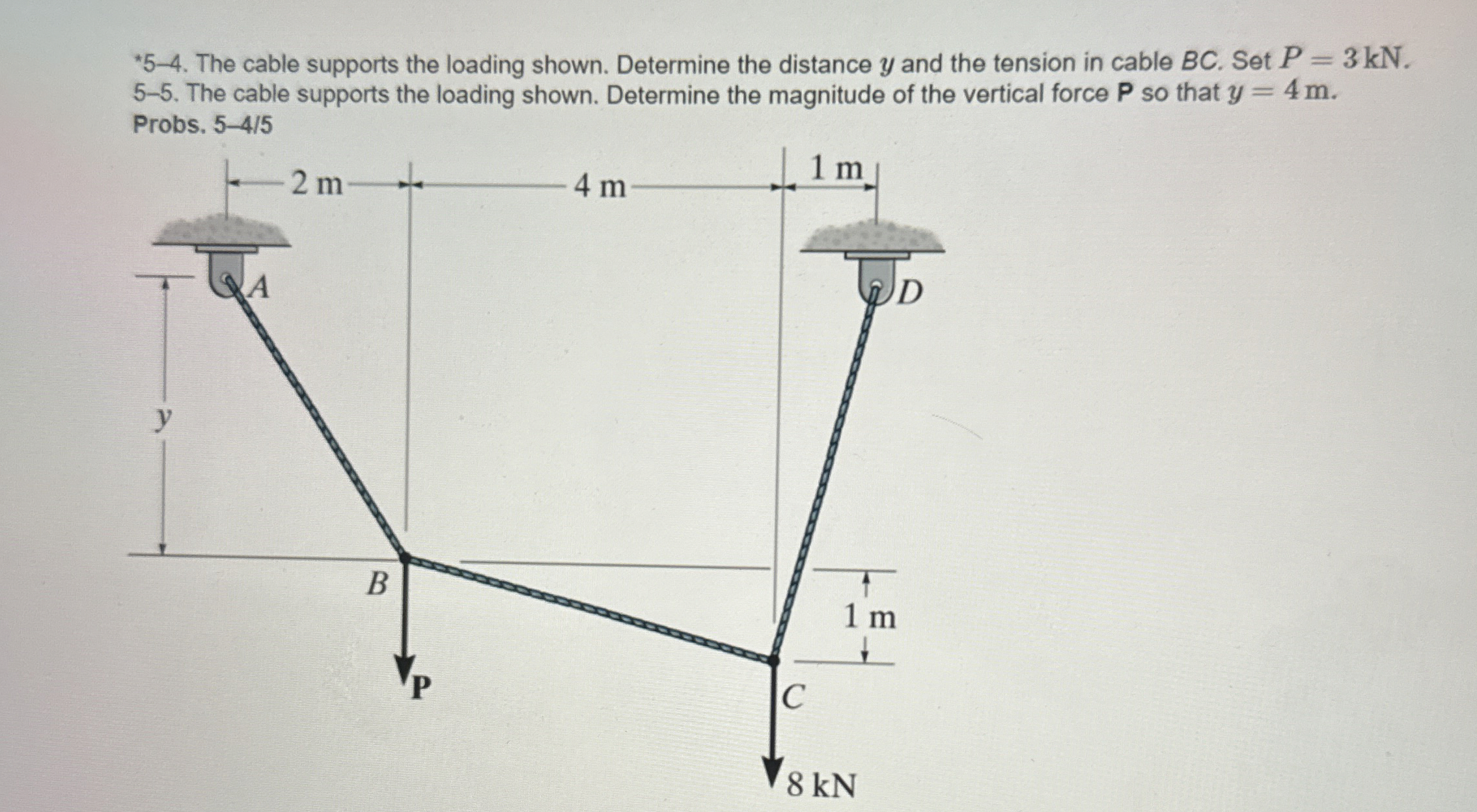

*5-4. The cable supports the loading shown. Determine the distance y and the tension in cable BC. Set P=3kN.5-5. The cable supports the loading shown. Determine the magnitude of the vertical force P so that y=4m. Probs. 5-4/5
* 5 - 4 . The cable supports the loading shown.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

What does this mean 5 - 1 . Determine the tension in each segment of the cable and the distance y D - Prob. 5 - 1 * 5 - 4 . The cable supports the loading shown. Determine the distance x B the force...

Q:

The cable supports the loading shown. Determine the distance xB the force at point B acts from A. Given: P = 40 lb F = 30 lb a = 5 ft b = 8 ft c = 2 ft d = 3 ft e = 3 f = 4 |

Q:

* 5 - 4 . The cable supports the loading shown. Determine the distance x B the force at point B acts from A . Set P = 4 0 l b .

Q:

The cable supports the loading shown. Determine the distance xB the force at point B acts from A. Set P =40lb. 5ft 8ft 2 ft 30 lb 3 ft-

Q:

The cable supports the loading shown. Determine the distance xB from the wall to point B. Given: W1 = 8 lb W2 = 15 lb a = 5 ft b = 8 ft c = 2 ft d = 3 ft XB OC W:

Q:

The cable supports the loading shown. Determine the distance y and the tension in cable BC. Set P = 3 kN. A 2 m B 4 m Probs. 5-4/5 1 m C D 1 m + 8 kN
