Question: What does this mean 5 - 1 . Determine the tension in each segment of the cable and the distance y D - Prob. 5

What does this mean

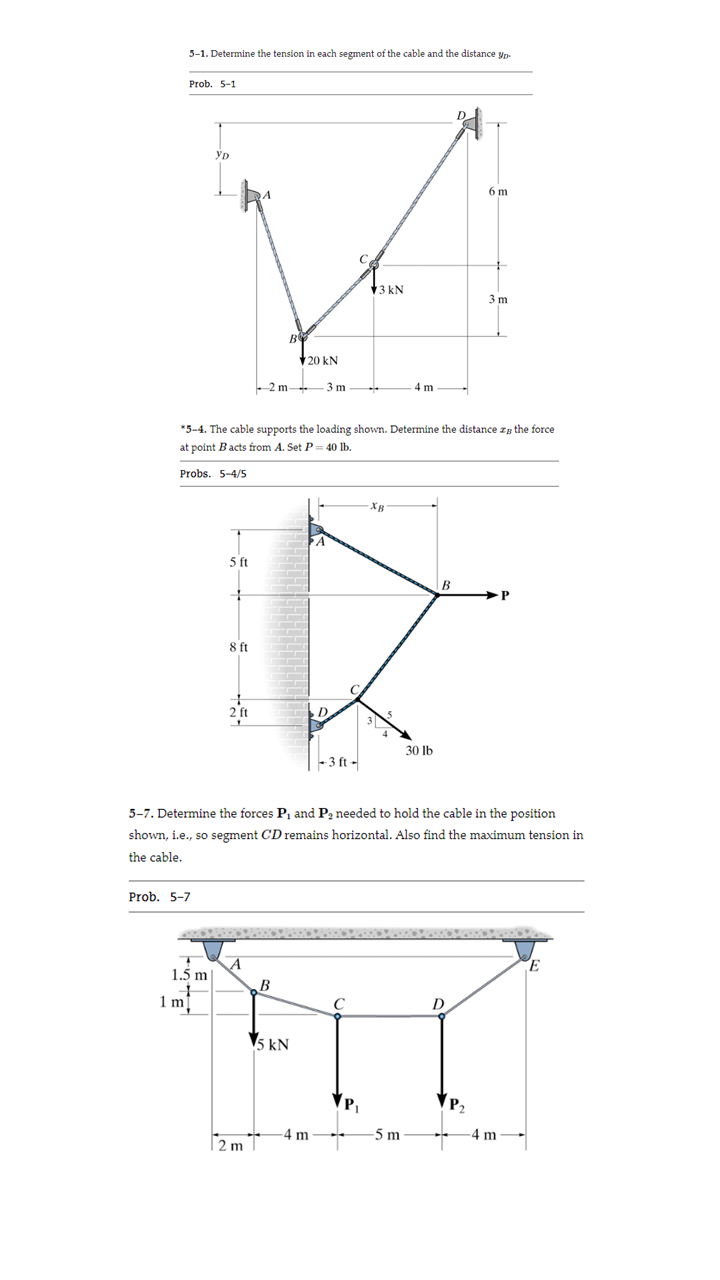

5-1. Determine the tension in each segment of the cable and the distance yD-
Prob. 5-1
*5-4. The cable supports the loading shown. Determine the distance xB the force
at point B acts from A. Set P=40lb.
Probs. 5-45
5-7. Determine the forces P1 and P2 needed to hold the cable in the position
shown, i.e., so segment CD remains horizontal. Also find the maximum tension in
the cable.
What does this mean 5 - 1 . Determine the tension

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Determine the tension in each segment of the cable and the distance y D . yD B m 20 kN -3 m U 13 kN Prob. 5-1 4 m 6 m 3 m
