Question: 5 - 7 . The solid aluminum shaft has a diameter of 5 0 mm . Determine the absolute maximum shear stress in the shaft

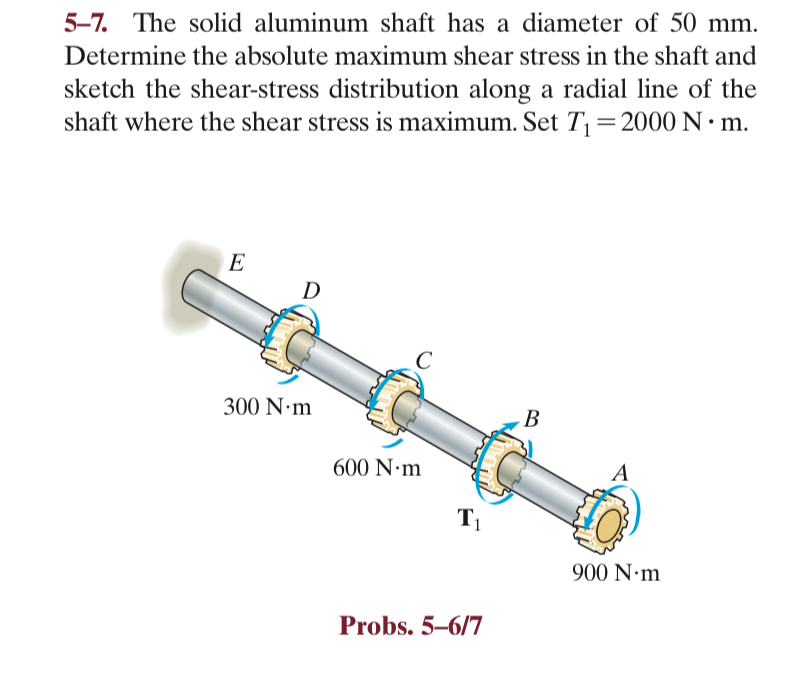

5-7. The solid aluminum shaft has a diameter of 50 mm .
Determine the absolute maximum shear stress in the shaft and
sketch the shear-stress distribution along a radial line of the
shaft where the shear stress is maximum. Set T1=2000N*m.
Probs. 5-6/7
5 - 7 . The solid aluminum shaft has a diameter

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

The solid aluminum shaft has a diameter of 50 mm. Determine the absolute maximum shear stress in the shaft and sketch the shear-stress distribution along a radial line of the shaft where the shear...
