Question: 6 . ( a ) A universal column section acting as a stanchion carries an axial load a n d d two further loads from

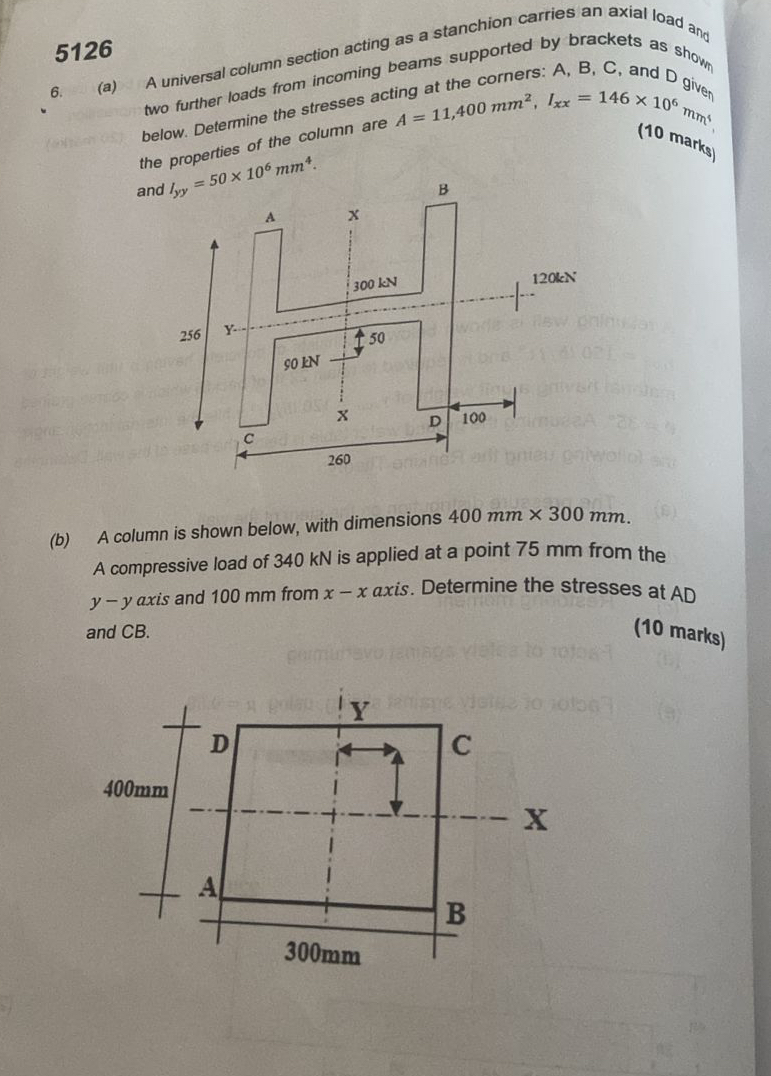

6.(a) A universal column section acting as a stanchion carries an axial load andd two further loads from incoming beams supported by brackets as shown below. Determine the stresses acting at the corners: A=146106givenn the properties of the column are A=11,400mm2,I=146106mms3
(b) A column is shown below, with dimensions 400mm300mm. A compressive load of 340 kN is applied at a point 75 mm from the y-y axis and 100 mm from x-x axis. Determine the stresses at AD and CB.
(10 marks)
