Question: 5 . A 3 - phase, 4 - pole, Y - connected induction motor is supplied with 3 8 0 V and 5 0 Hz

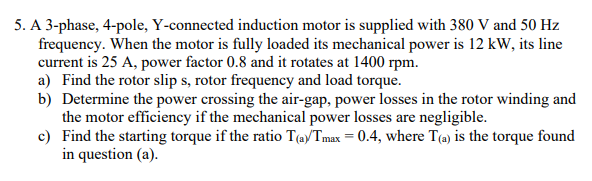

5. A 3-phase, 4-pole, Y-connected induction motor is supplied with 380 V and 50 Hz frequency. When the motor is fully loaded its mechanical power is 12 kW , its line current is 25 A , power factor 0.8 and it rotates at 1400 rpm .
a) Find the rotor slip s, rotor frequency and load torque.
b) Determine the power crossing the air-gap, power losses in the rotor winding and the motor efficiency if the mechanical power losses are negligible.
c) Find the starting torque if the ratio \(\mathrm{T}_{(\mathrm{a})}/\mathrm{T}_{\max }=0.4\), where \(\mathrm{T}_{(\mathrm{a})}\) is the torque found in question (a).
5 . A 3 - phase, 4 - pole, Y - connected
