Question: * 6 . 3 . Repeat Problem 6 . 2 for the circuit shown in Figure P 6 . 3 . Figure P 6 .

*6.3. Repeat Problem 6.2 for the circuit shown in Figure P6.3.

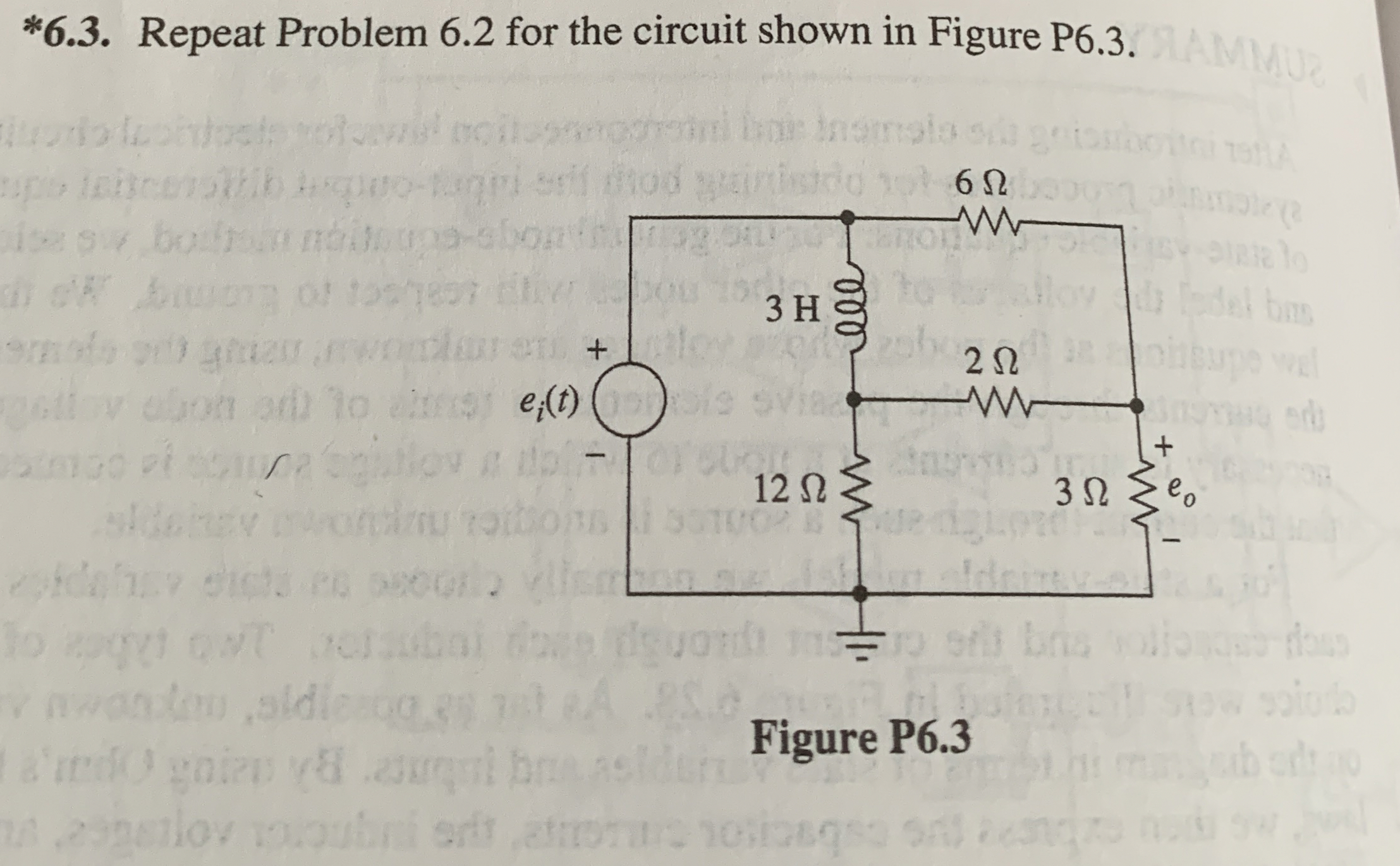

Figure P6.3Find input and output equation with ei(t) the input and eo the output
* 6 . 3 . Repeat Problem 6 . 2 for the circuit

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
