Question: (5) A magnetically suspended ball can be modeled by the following nonlinear dynamics: y = 1- u? y2 where y denotes the vertical position of

(5) A magnetically suspended ball can be modeled by the following

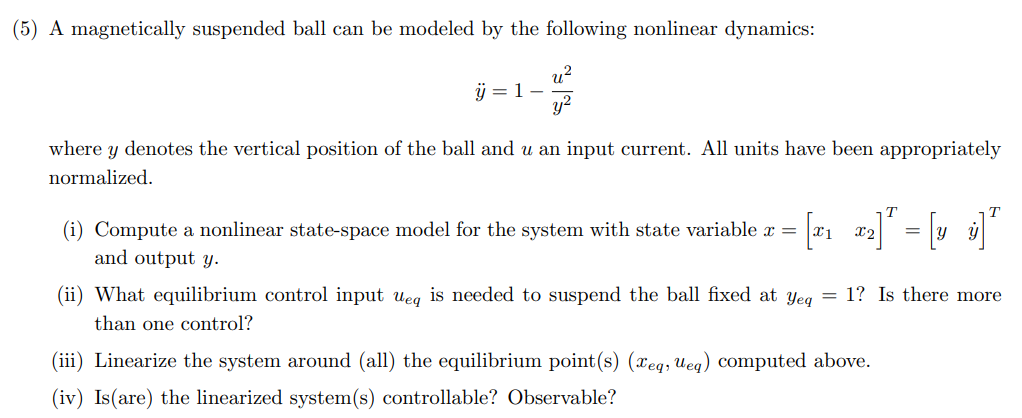

(5) A magnetically suspended ball can be modeled by the following nonlinear dynamics: y = 1- u? y2 where y denotes the vertical position of the ball and u an input current. All units have been appropriately normalized. 1 T 22 (i) Compute a nonlinear state-space model for the system with state variable x = and output y. (ii) What equilibrium control input Ueq is needed to suspend the ball fixed at Yeq = 1? Is there more than one control? (iii) Linearize the system around (all) the equilibrium point(s) (xeq, weq) computed above. (iv) Is(are) the linearized system(s) controllable? Observable? (5) A magnetically suspended ball can be modeled by the following nonlinear dynamics: y = 1- u? y2 where y denotes the vertical position of the ball and u an input current. All units have been appropriately normalized. 1 T 22 (i) Compute a nonlinear state-space model for the system with state variable x = and output y. (ii) What equilibrium control input Ueq is needed to suspend the ball fixed at Yeq = 1? Is there more than one control? (iii) Linearize the system around (all) the equilibrium point(s) (xeq, weq) computed above. (iv) Is(are) the linearized system(s) controllable? Observable

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
