Question: 5. Add the two 4 bit signed B2T (2's complement) values given (Op1 and Op2 below). Be sure to show all carries and all sum

5. Add the two 4 bit signed B2T (2's complement) values

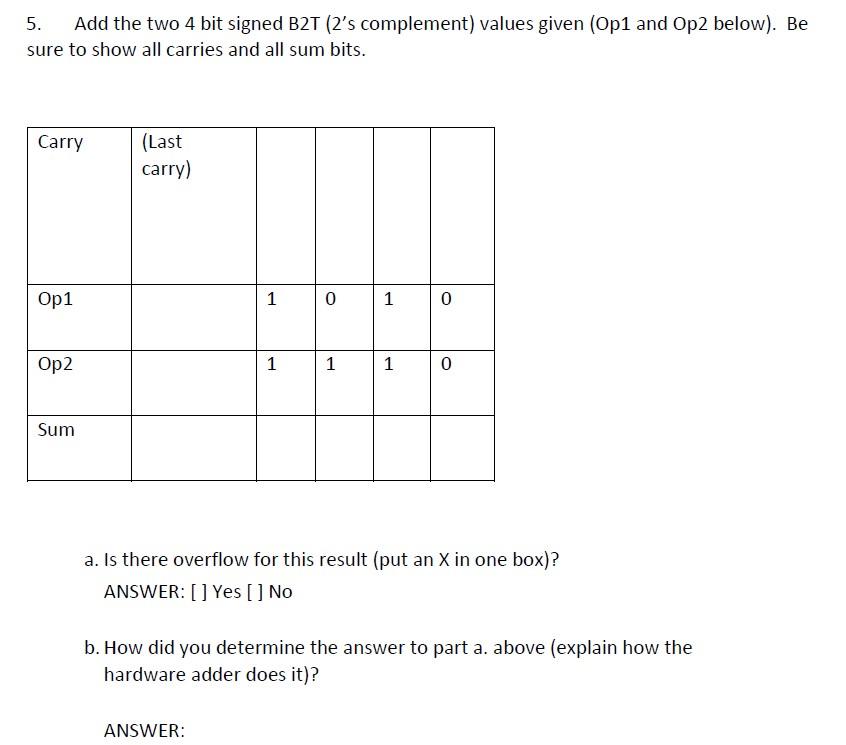

5. Add the two 4 bit signed B2T (2's complement) values given (Op1 and Op2 below). Be sure to show all carries and all sum bits. a. Is there overflow for this result (put an X in one box)? ANSWER: [ ] Yes [ ] No b. How did you determine the answer to part a. above (explain how the hardware adder does it)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
