Question: 5. Consider the time varying process shown below. Match these several patterns to the corresponding X-bar and R charts shown in Figs a to e.

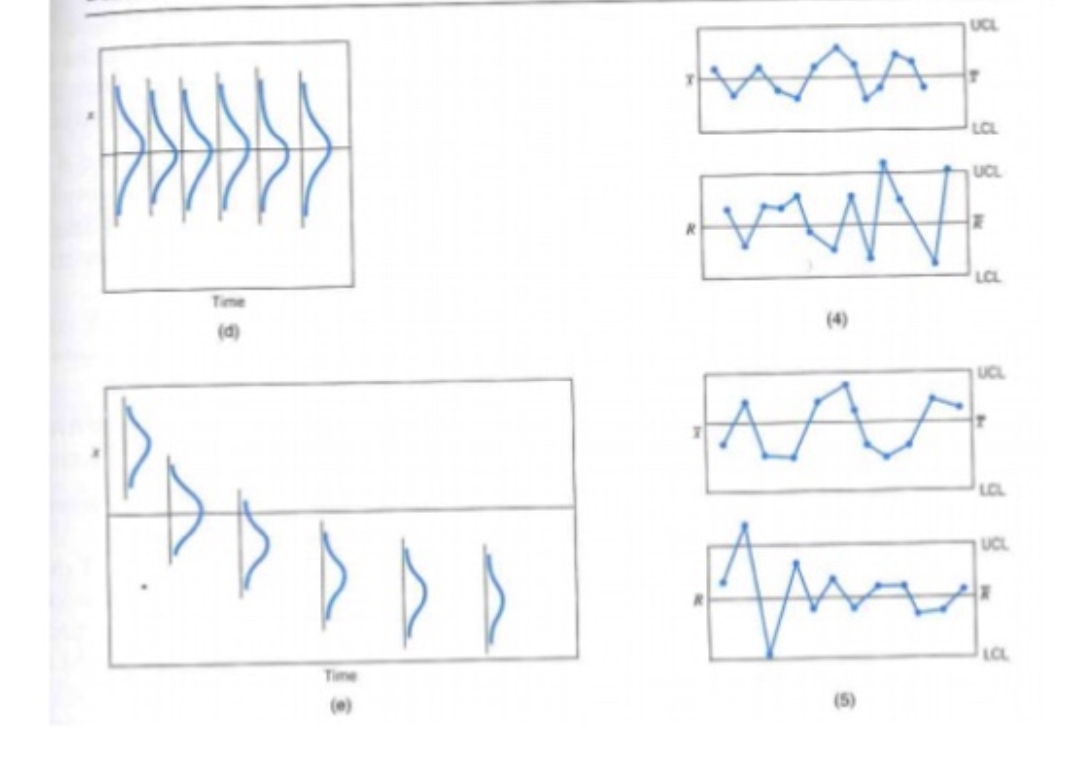

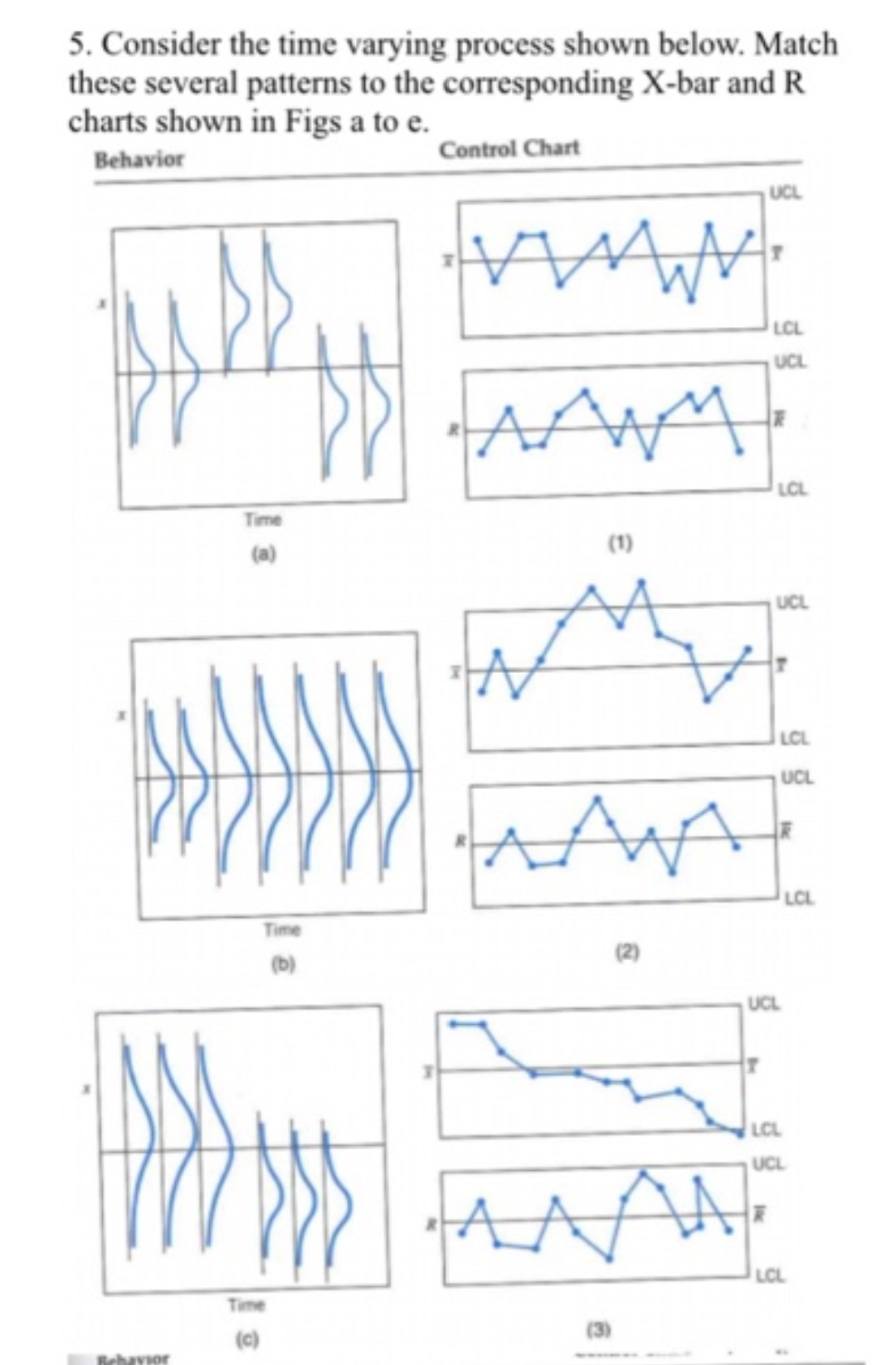

5. Consider the time varying process shown below. Match these several patterns to the corresponding X-bar and R charts shown in Figs a to e. Behavior Control Chart LCL UCL M LCL Time (1) UCL LCL UCL LCL ( b ) (2) UCL LCL UCL LCL Time (c) (3)UCL LCL UCL LCL Time (d) (4) UCL LOL UCL LCL Time (e)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
