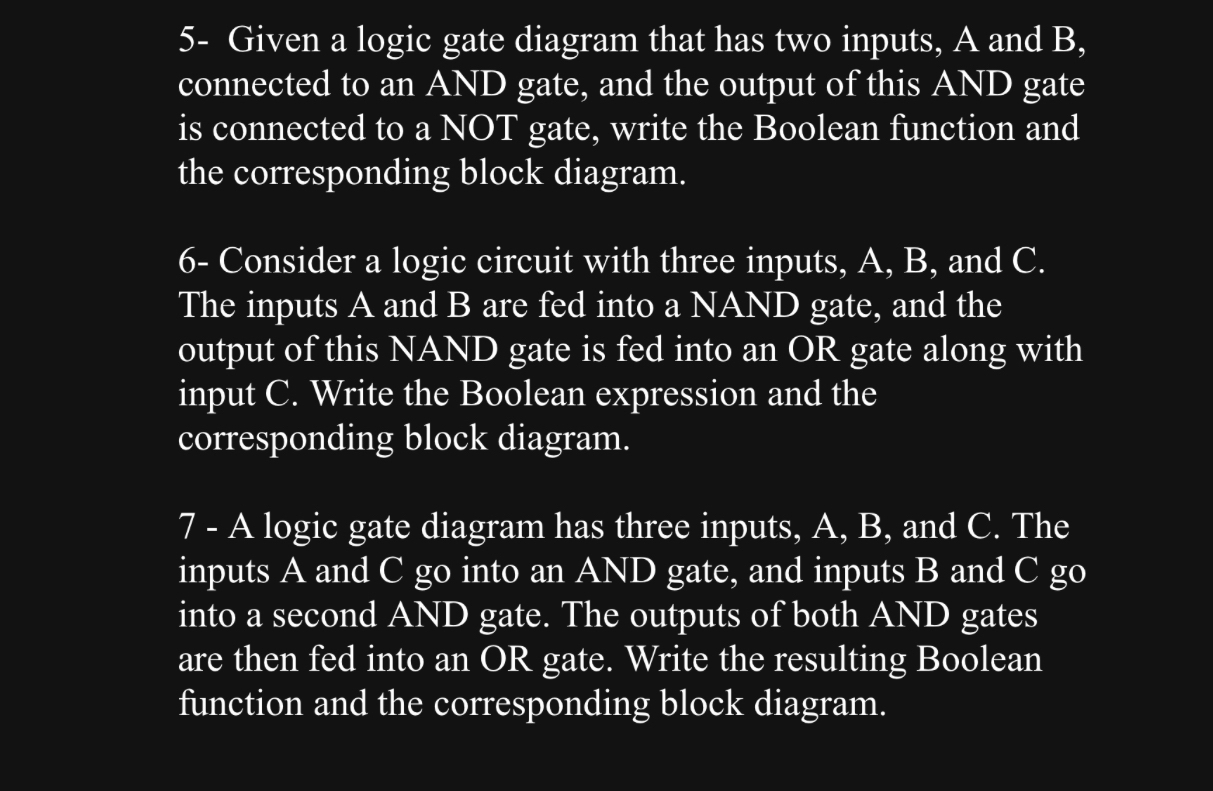

$5-$ Given a logic gate diagram that has two inputs, A and B $,$

connected to an AND gate, and the output of this AND gate

is connected to a NOT gate, write the Boolean function and

the corresponding block diagram.

$6-$ Consider a logic circuit with three inputs, $A,B,$ and C $.$

The inputs A and B are fed into a NAND gate, and the

output of this NAND gate is fed into an OR gate along with

input C$.$ Write the Boolean expression and the

corresponding block diagram.

$7-$ A logic gate diagram has three inputs, A$,$ B$,$ and C$.$ The

inputs A and C go into an AND gate, and inputs B and C go

into a second AND gate. The outputs of both AND gates

are then fed into an OR gate. Write the resulting Boolean

function and the corresponding block diagram.

Show work For all three please
