Create a module that implements a NOR gate. A NOR gate is an OR gate with its output inverted. A NOR function needs two operators when written in Verilog. An assign statement drives a wire (or "net", as it's more formally called) with a value. This value can be as complex a function as you want, as long as it's a combinational (i.e., memory-less, with no hidden state) function. An assign statement is a continuous assignment because the output is "recomputed" whenever any of its inputs change, forever, much like a simple logic gate.

Module Declaration:

module top_module( input a, input b, output out );

Hint Verilog has separate bitwise-OR (|) and logical-OR (||) operators, like C. Since we're working with a one-bit here, it doesn't matter which we choose.

thanks for helping

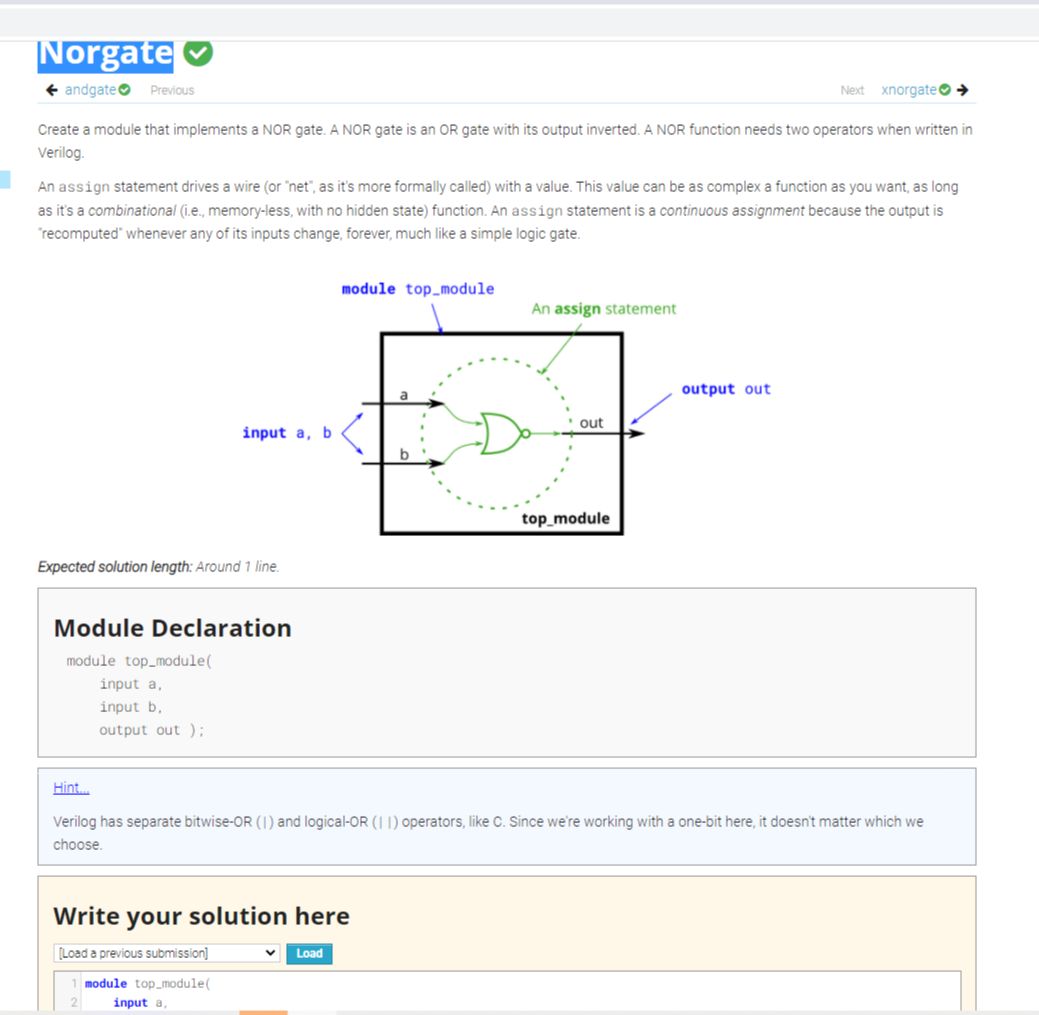

Norgate + andgate Previous Next xnorgaten Create a module that implements a NOR gate. A NOR gate is an OR gate with its output inverted. A NOR function needs two operators when written in Verilog An assign statement drives a wire (or "net", as it's more formally called) with a value. This value can be as complex a function as you want, as long as it's a combinational (i.e., memory-less, with no hidden state) function. An assign statement is a continuous assignment because the output is "recomputed' whenever any of its inputs change forever, much like a simple logic gate. module top_module An assign statement output out a out input a, b top_module Expected solution length: Around 1 line. Module Declaration module top_module input a input b. output out); Hint. Verilog has separate bitwise-OR (I) and logical-OR (I 1) operators, like C. Since we're working with a one-bit here, it doesn't matter which we choose Write your solution here [Load a previous submission] Load module top_module input a 2
