Question: 5- Given the following Boolean function: F(X, Y, Z, W) - 2m(0,2,4,5,6,7,13,15) a- Construct the truth table b- Use the truth table to realize F

5- Given the following Boolean function: F(X, Y, Z, W) -

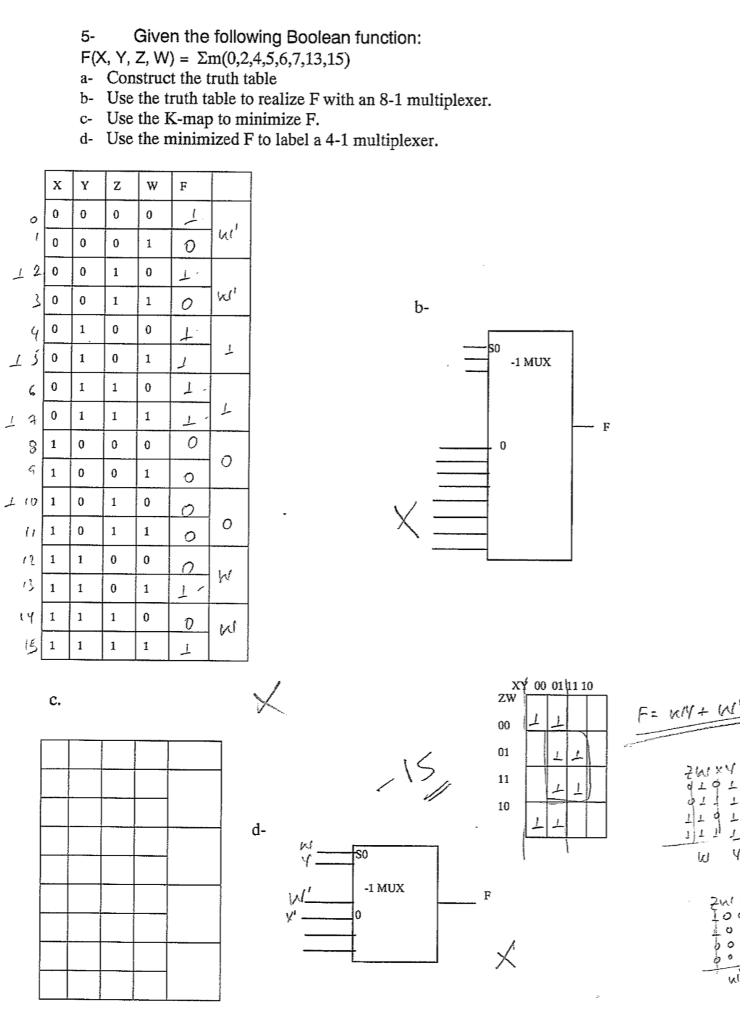

5- Given the following Boolean function: F(X, Y, Z, W) - 2m(0,2,4,5,6,7,13,15) a- Construct the truth table b- Use the truth table to realize F with an 8-1 multiplexer. c- Use the K-map to minimize F. d- Use the minimized F to label a 4-1 multiplexer. ut b- 1 MUX 1 01 00 011110 ZW 01 10 -1 MUX

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
