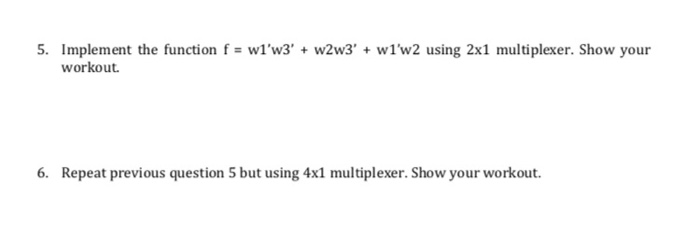

Question: 5. Implement the function f= w1'w3' + w2w3' + w1'w2 using 2x1 multiplexer. Show your workout 6. Repeat previous question 5 but using 4x1 multiplexer.

5. Implement the function f= w1'w3' + w2w3' + w1'w2 using 2x1 multiplexer. Show your workout 6. Repeat previous question 5 but using 4x1 multiplexer. Show your workout
