Question: (5 marks). For the following Cobegin/CoEnd code, draw the Process Flow Graph and give the Fork/Join code that corresponds to that particular code sequence COBEGIN

(5 marks). For the following Cobegin/CoEnd code, draw the Process Flow

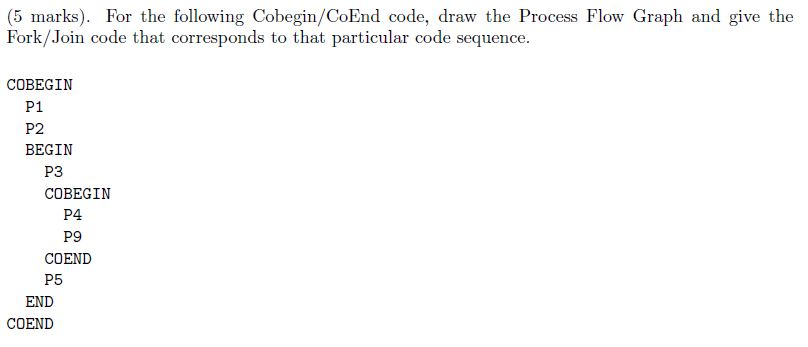

(5 marks). For the following Cobegin/CoEnd code, draw the Process Flow Graph and give the Fork/Join code that corresponds to that particular code sequence COBEGIN P1 P2 BEGIN P3 COBEGIN P4 P9 COEND P5 END COEND

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
