Question: ( 5 ) The figure below shows a bar that is made of AISI 1 0 0 6 cold - drawn steel and is loaded

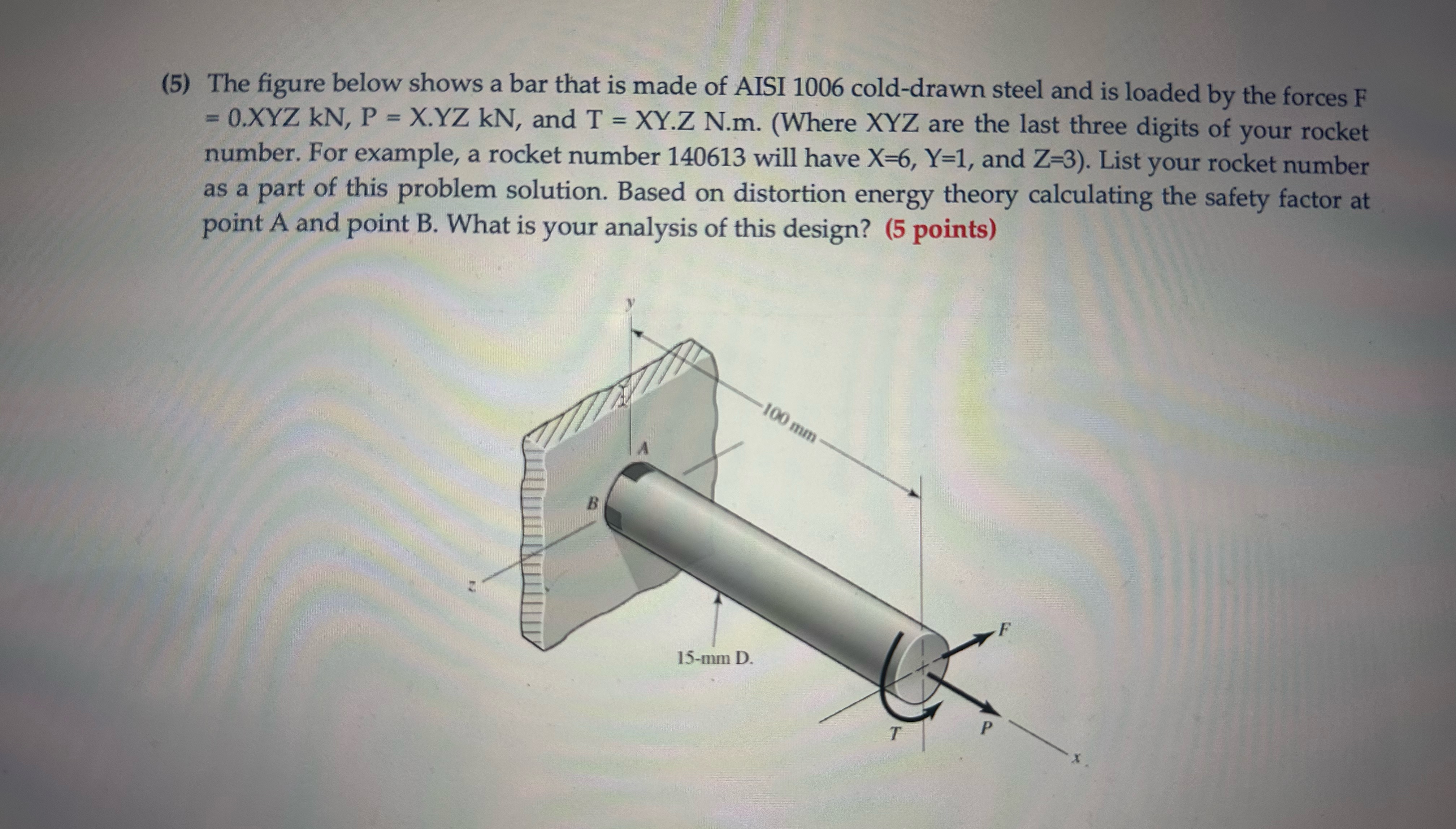

(5) The figure below shows a bar that is made of AISI 1006 cold-drawn steel and is loaded by the forces F =0.xYZkN,P=x.YZkN, and T=xY.Z N.m.(Where XYZ are the last three digits of your rocket number. For example, a rocket number 140613 will have x=6,Y=1, and Z=3). List your rocket number as a part of this problem solution. Based on distortion energy theory calculating the safety factor at point A and point B. What is your analysis of this design? (5 points)
Use values x=1 y=7 z =2
