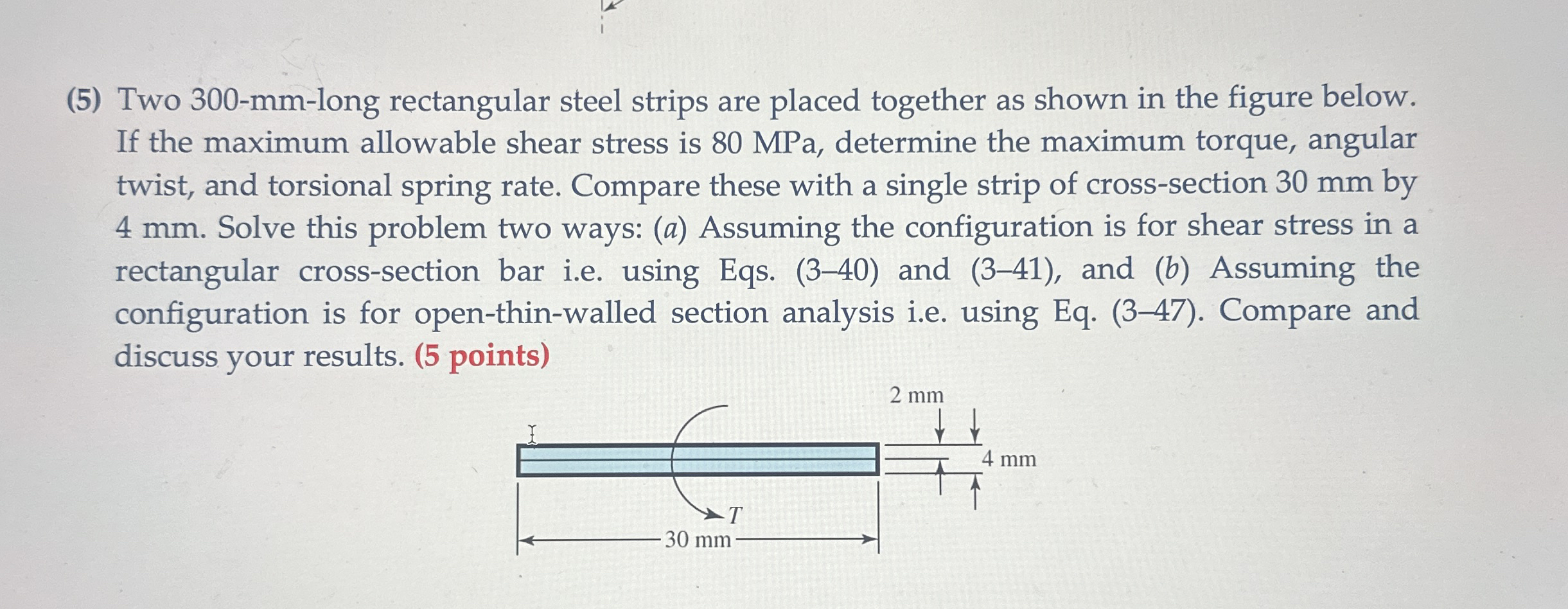

Question: ( 5 ) Two 3 0 0 - m m - long rectangular steel strips are placed together as shown in the figure below. If

(5) Two 300-mm-long rectangular steel strips are placed together as shown in the figure below.
If the maximum allowable shear stress is 80 MPa , determine the maximum torque, angular
twist, and torsional spring rate. Compare these with a single strip of cross-section 30 mm by
4 mm . Solve this problem two ways: (a) Assuming the configuration is for shear stress in a
rectangular cross-section bar i.e. using Eqs. (3-40) and (3-41), and (b) Assuming the
configuration is for open-thin-walled section analysis i.e. using Eq.(3-47). Compare and
discuss your results. (5 points)
( 5 ) Two 3 0 0 - m m - long rectangular steel
