Question: 5 . Water flow over a flat surface at ( 2 mathrm { ~m } / mathrm { s } )

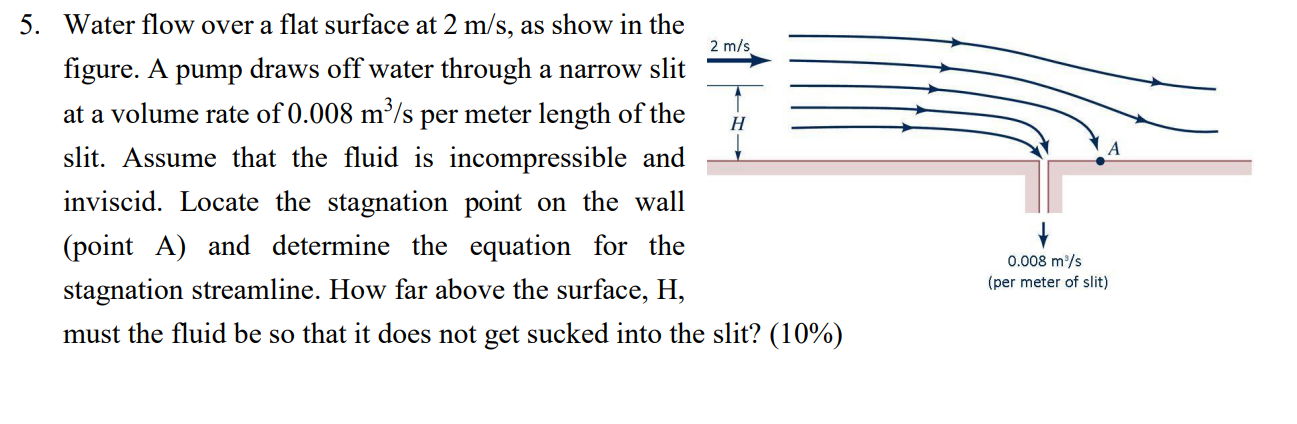

5. Water flow over a flat surface at \(2\mathrm{~m}/\mathrm{s}\), as show in the figure. A pump draws off water through a narrow slit at a volume rate of \(0.008\mathrm{~m}^{3}/\mathrm{s}\) per meter length of the slit. Assume that the fluid is incompressible and inviscid. Locate the stagnation point on the wall (point A) and determine the equation for the stagnation streamline. How far above the surface, H, must the fluid be so that it does not get sucked into the slit? (10\%)
