Question: (50 points) Datapath and control flow for for a simple processor. - Draw the datapath for R-type instruction in a new picture by taking help

(50 points) Datapath and control flow for for a

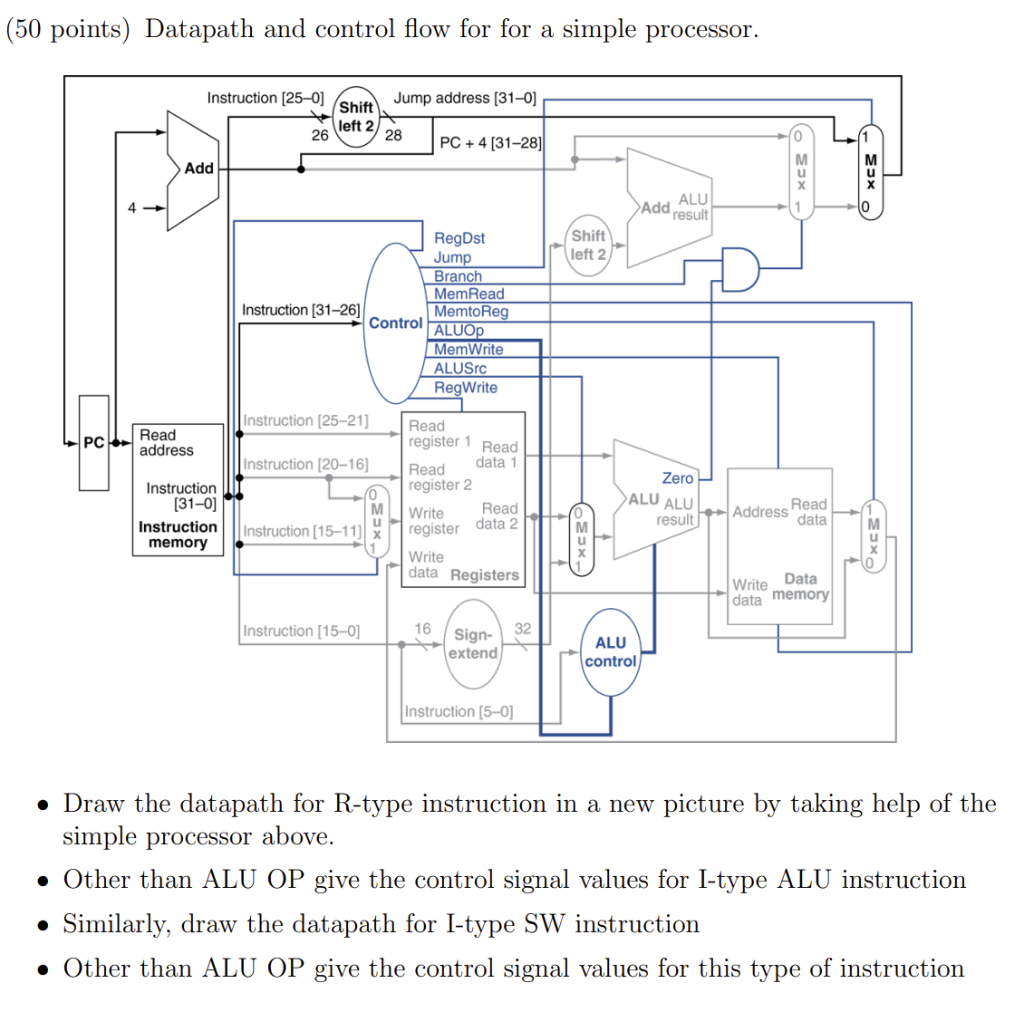

(50 points) Datapath and control flow for for a simple processor. - Draw the datapath for R-type instruction in a new picture by taking help of the simple processor above. - Other than ALU OP give the control signal values for I-type ALU instruction - Similarly, draw the datapath for I-type SW instruction - Other than ALU OP give the control signal values for this type of instruction (50 points) Datapath and control flow for for a simple processor. - Draw the datapath for R-type instruction in a new picture by taking help of the simple processor above. - Other than ALU OP give the control signal values for I-type ALU instruction - Similarly, draw the datapath for I-type SW instruction - Other than ALU OP give the control signal values for this type of instruction

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
