Question: 6 ) ( 1 0 points ) Consider the simply supported, overhung beam shown below. The support at A is pinned and the

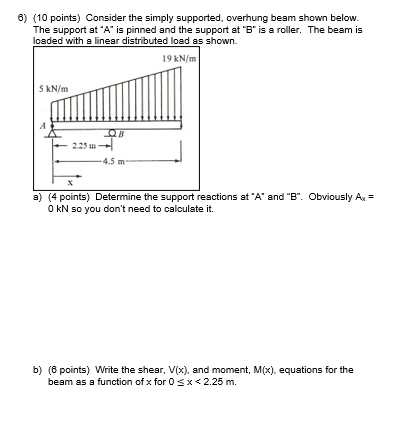

6)(10 points) Consider the simply supported, overhung beam shown below. The support at " A " is pinned and the support at " B " is a roller. The beam is loaded with a linear distributed load as shown. 0 kN so you don't need to calculate it.
b)(6 points) Write the shear, \(\mathrm{V}(\mathrm{x})\), and moment, \(\mathrm{M}(\mathrm{x})\), equations for the beam as a function of \( x \) for \(0\leq x2.25\mathrm{~m}\).
