Question: ( 7 points ) Consider the simply supported beam shown below. The support reactions at A and B are: A x = 0 l b

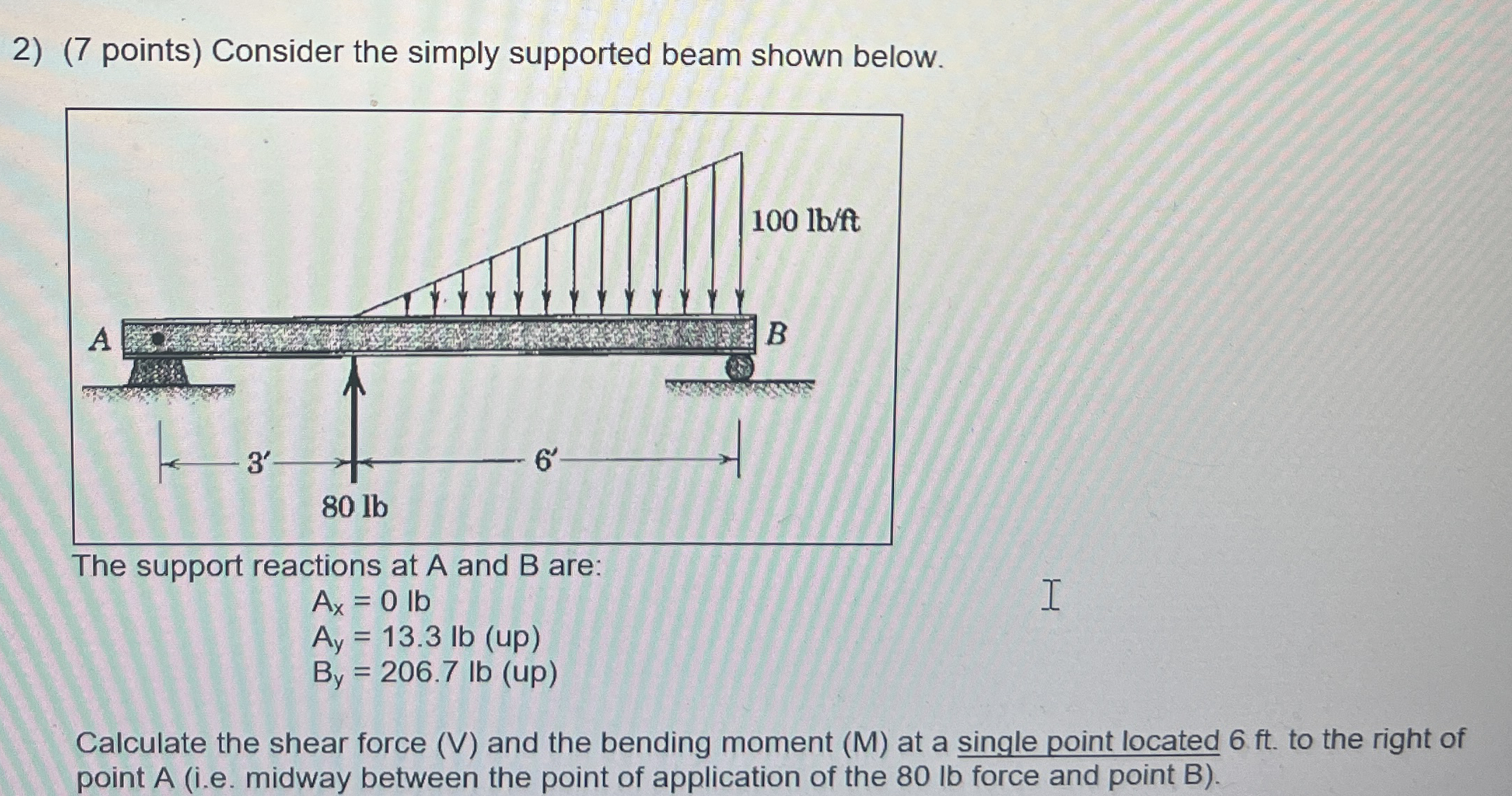

(7 points) Consider the simply supported beam shown below.
The support reactions at A and B are:
Ax=0lb
Ay=13.3lb(up)
By=206.7lb(up)
Calculate the shear force (V) and the bending moment (M) at a single point located 6 ft . to the right of point A(i.e. midway between the point of application of the 80 lb force and point B). Can you do it on paper then submit a photo of your work?
( 7 points ) Consider the simply supported beam

Step by Step Solution

There are 3 Steps involved in it
