Question: * 6 . 1 7 In Figure 6 . 5 9 assume that the unspecified outputs in states ( B ) and

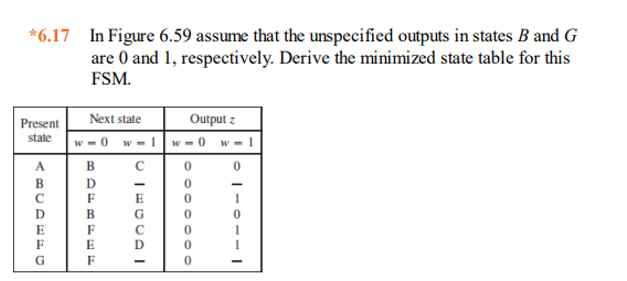

*6.17 In Figure 6.59 assume that the unspecified outputs in states \( B \) and \( G \) are 0 and 1, respectively. Derive the minimized state table for this FSM.
* 6 . 1 7 In Figure 6 . 5 9 assume that the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
