Question: Question 1 A . Given the full wave rectifier in Figure Q 1 ( b ) , select the component values to power a Zener

Question 1

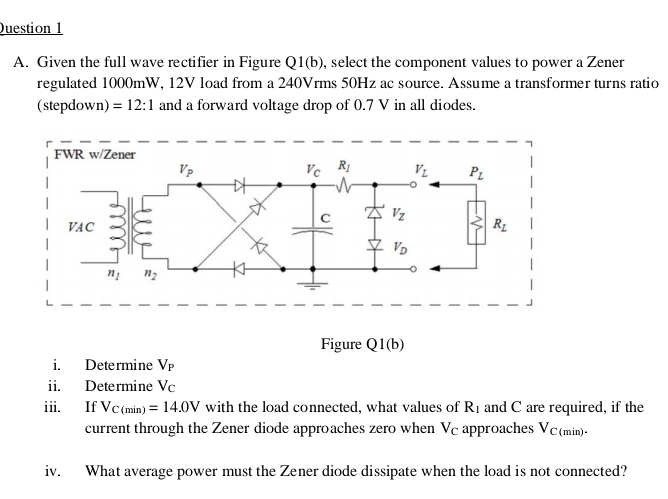

A. Given the full wave rectifier in Figure Q1(b), select the component values to power a Zener regulated 1000mW,12V load from a 240 Vrms 50 Hz ac source. Assume a transformer turns ratio stepdown
Question 1 A . Given the full wave rectifier in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
