Question: 6 - 1 8 . Determine the force in each member of the truss and state if the members are in tension or compression. Hint:

6 - 18 .

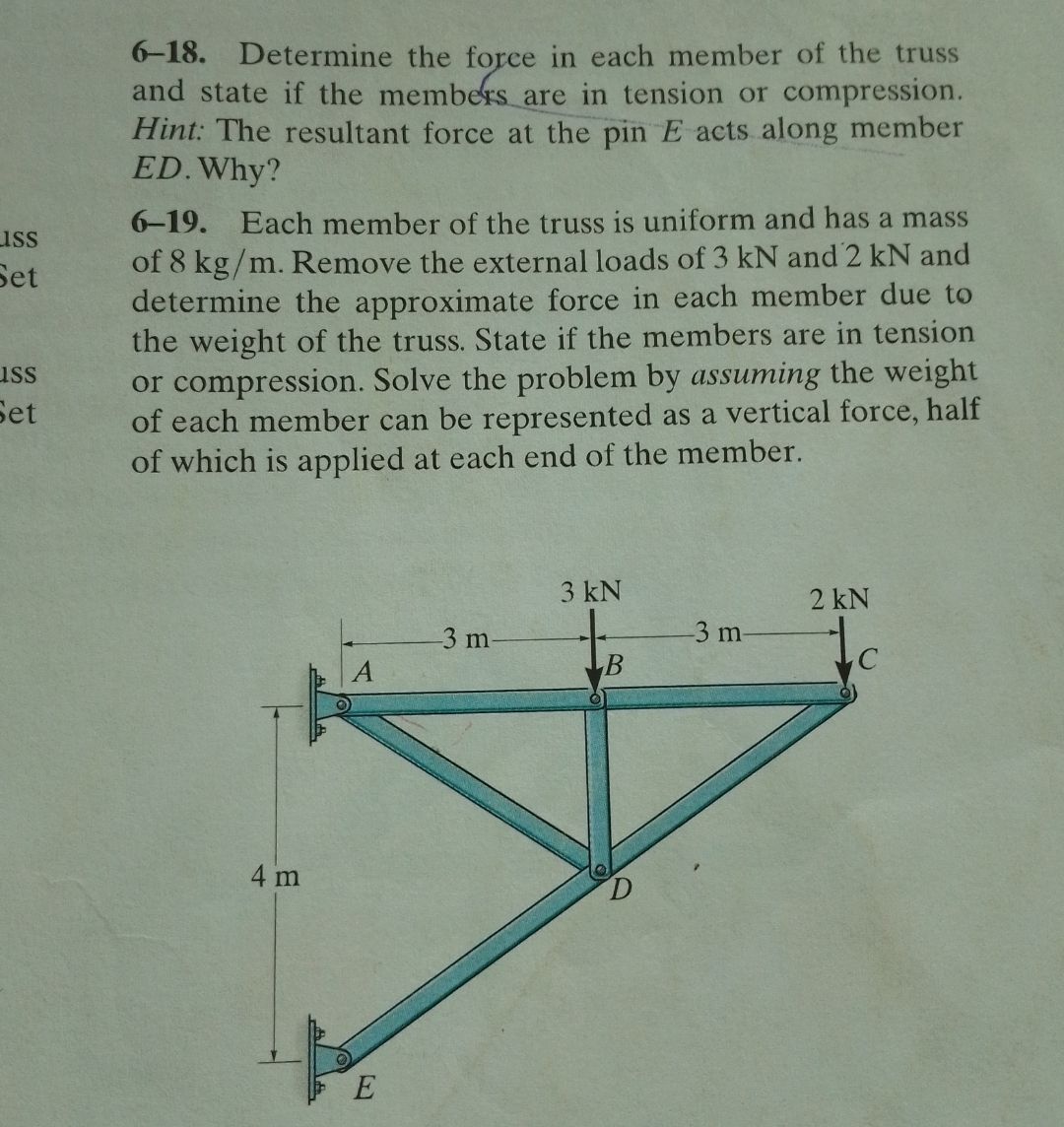

Determine the force in each member of the truss and state if the members are in tension or compression. Hint: The resultant force at the pin

E

acts along member

E D .

Why?

6 - 19 .

Each member of the truss is uniform and has a mass of

8 k \frac{g}{m} .

Remove the external loads of

3

kN and

2

kN and determine the approximate force in each member due to the weight of the truss. State if the members are in tension or compression. Solve the problem by assuming the weight of each member can be represented as a vertical force, half of which is applied at each end of the member.

6 - 1 8 . Determine the force in each member of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!
