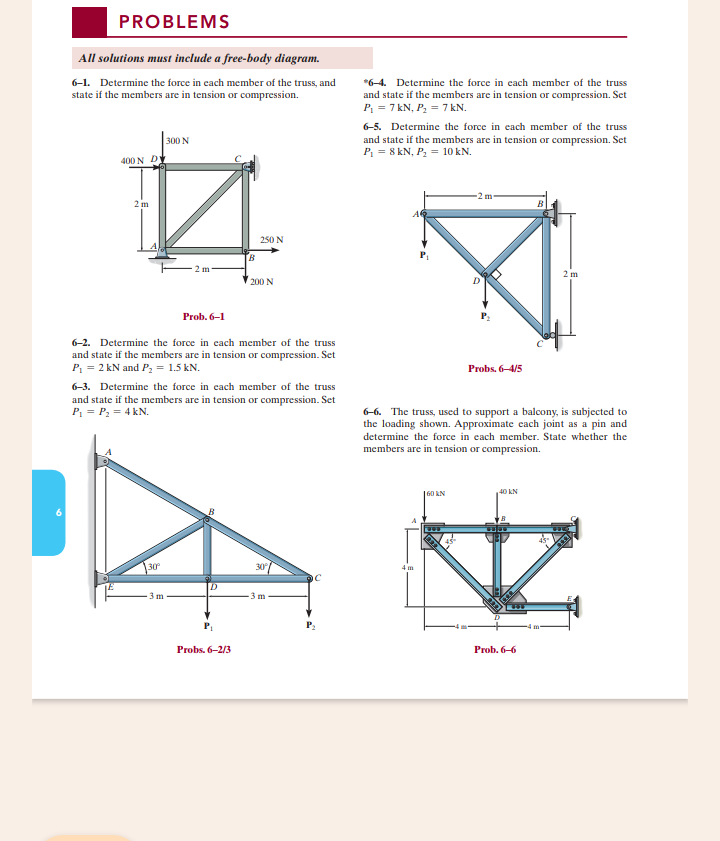

Question: PROBLEMS All solutions must include a free - body diagram. 6 - 1 . Determine the force in each member of the truss, and state

PROBLEMS

All solutions must include a free

-

body diagram.

6 - 1 .

Determine the force in each member of the truss, and state if the members are in tension or compression.

* 6 - 4 .

Determine the force in each member of the truss and state if the members are in tension or compression. Set

P_{1} = 7 k N, P_{2} = 7 k N .

6 - 5 .

Determine the foree in each member of the truss and state if the members are in tension or compression. Set

P_{1} = 8 k N, P_{2} = 10 k N .

6 - 6 .

The truss, used to support a balcony, is subjected to the loading shown. Approximate each joint as a pin and determine the force in each member. State whether the members are in tension or compression.

PROBLEMS All solutions must include a free - body

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
