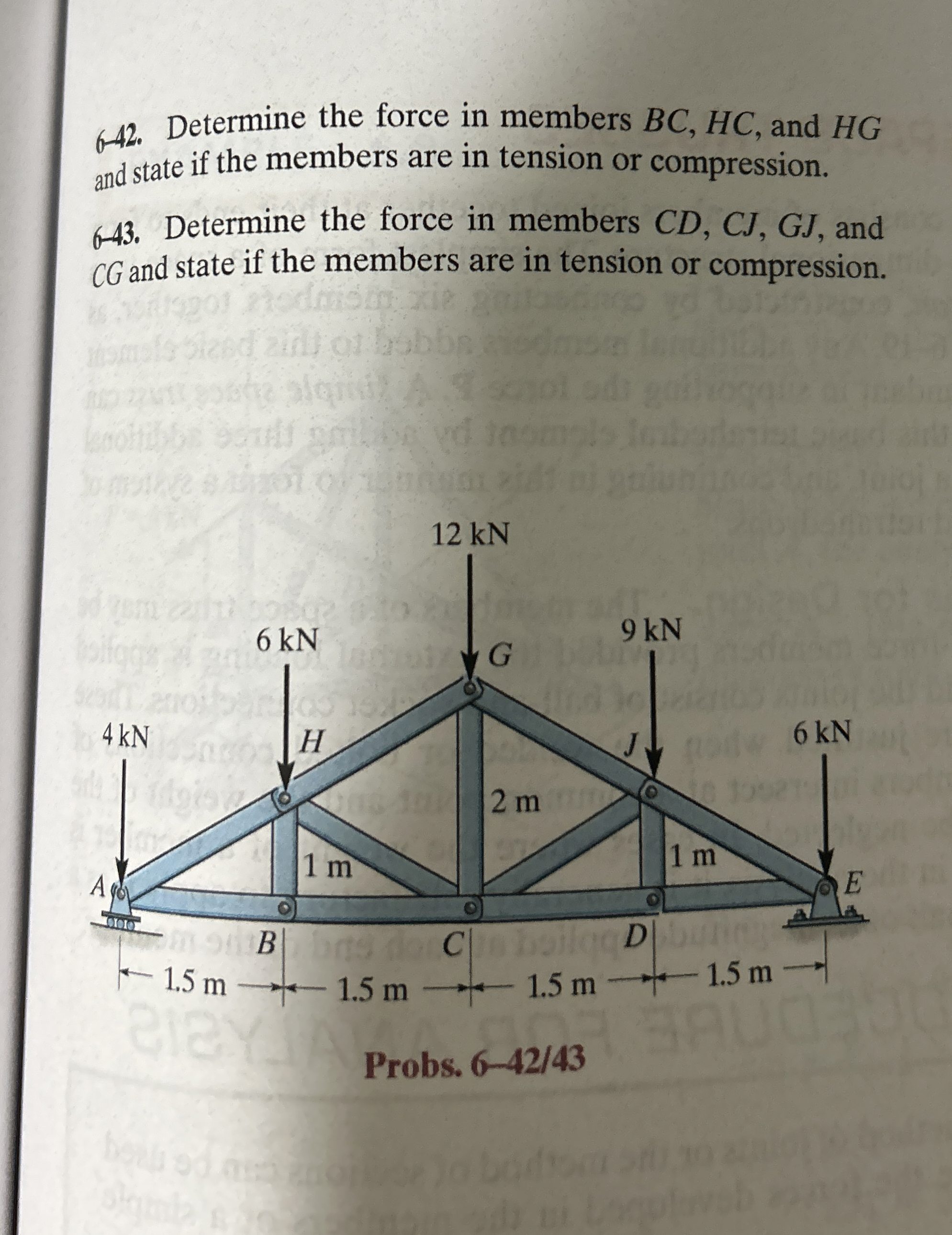

Question: 6 - 4 2 . Determine the force in members B C , H C , and H G and state if the members are

6-42. Determine the force in members BC,HC, and HG and state if the members are in tension or compression.
6-43. Determine the force in members CD,CJ,GJ, and CG and state if the members are in tension or compression.
Probs. 6-42/43
also what are the zero force members
6 - 4 2 . Determine the force in members B C , H

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
