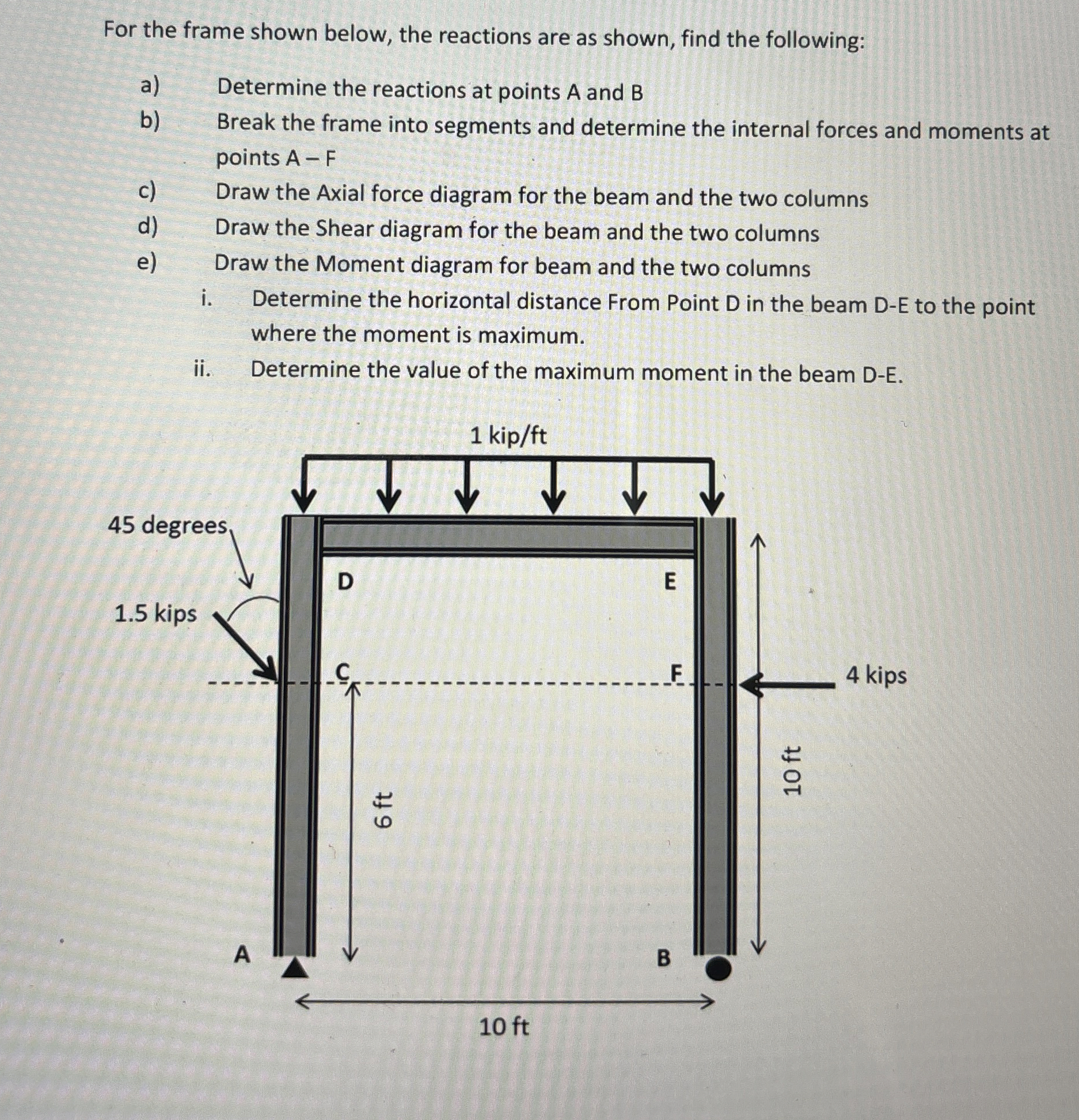

For the frame shown below, the reactions are as shown, find the following:

a$)$ Determine the reactions at points A and $B$

b$)$ Break the frame into segments and determine the internal forces and moments at points A $-$ F

c$)$ Draw the Axial force diagram for the beam and the two columns

d$)$ Draw the Shear diagram for the beam and the two columns

e$)$ Draw the Moment diagram for beam and the two columns

i$.$ Determine the horizontal distance From Point $D$ in the beam $D-E$ to the point where the moment is maximum.

ii$.$ Determine the value of the maximum moment in the beam D$-$E$.$
